W-Band Reflective SPDT PIN Diode Switch

75 to 110 GHz, 20 dB Isolation, WR-10 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

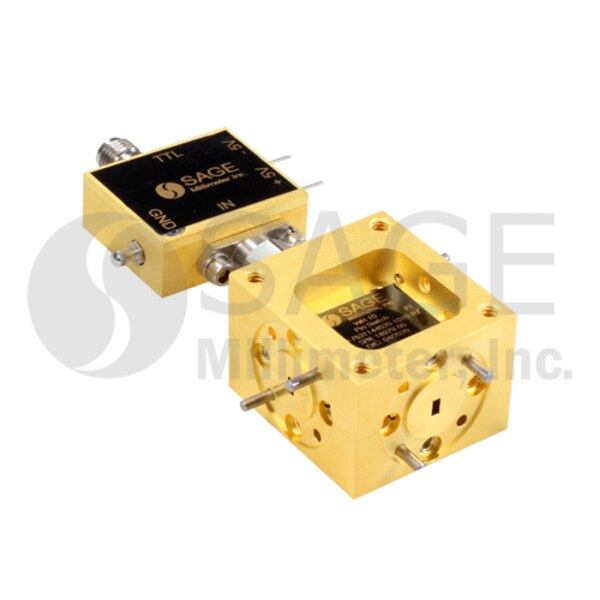

SKD-7531144020-1010-R1 is a PIN diode based, single pole, double throw (SPDT) switch with a TTL driver that operates across the entire W-band frequency range of 75 and 110 GHz. This model has an insertion loss of 4 dB typical and a nominal isolation of 20 dB at its center frequency. The SPDT switch features WR-10 waveguides with UG-387/U-M anti-cocking flanges at the RF input and outputs and a female SMA connector for TTL control on the driver. The switch can be modified for various operational frequencies under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,250.00
3 - 4 $4,037.50
5 - 9 $3,835.63

Bulk Availability

1 - 4In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Insertion Loss4 dB
Isolation20 dB
Power Handling+20 dBm
Bias±5 VDC/10 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-10 Waveguide
