X6 Frequency Extender

75 to 110 GHz, +16 dBm Adjustable Output Power, WR-10 Waveguide, W-Band

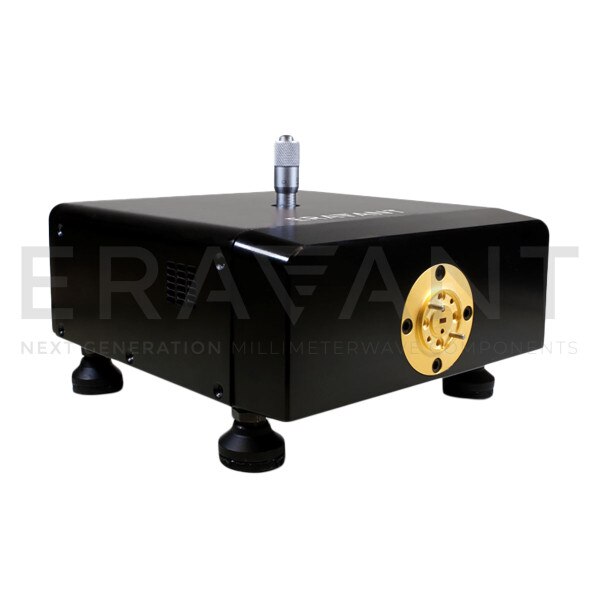

STE-SF610-S1 is a high ouput power W-Band X6 frequency extender that uses an input frequency range of 12.5 to 18.33 GHz at +5 dBm along with harmonic generation and filtering to produce a 75 to 110 GHz RF signal from 0 to +16 dBm with an adjustable attenuation feature. The extender is designed and manufacture as a bench top unit to extend the low frequency synthesizer or sweeper without losing all of the functionalities and features. The extender also features adjustable legs, which can also be removed, to allow for an easy test set up.
ECCN: 3A001.b.7.b.1
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency75 GHz
Maximum Output Frequency110 GHz
Output Power+16 dBm
Minimum Input Frequency12.5 GHz
Maximum Input Frequency18.33 GHz
Input Power+5 dBm
Power Supply100 VAC to 240 VAC
Output PortWR-10 Waveguide
Input Port2.92 mm (F)
