W-Band Reflective SPST PIN Diode Switch

75 to 110 GHz, 15 dB Isolation, WR-10 Waveguide
SKU:SKS-7531142520-1010-R1
Availability:2 to 4 Weeks ARO

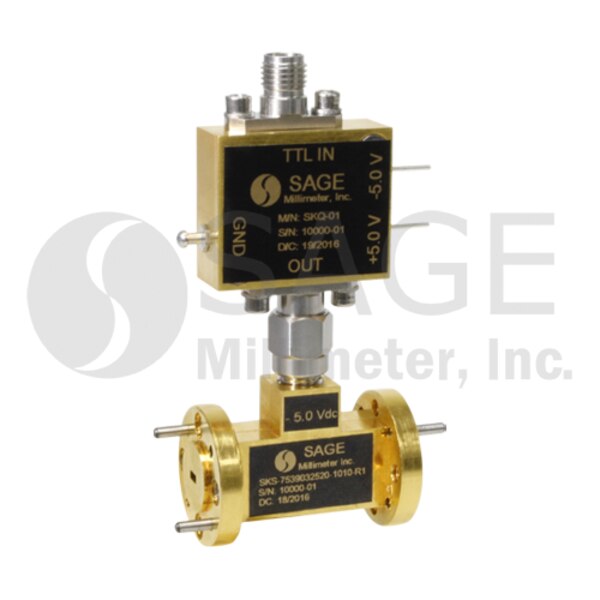

SKS-7531142520-1010-R1 is a PIN diode based, single pole, single throw (SPST) switch with a TTL driver that covers 75 to 110 GHz. This model offers a low insertion loss of 2.5 dB with a typical isolation of 15 dB. The SPST switch has a WR-10 waveguide with UG-387/U-M flanges at the RF input and output and an SMA(F) connector for TTL control. The SPST switch can be modified for various operational frequencies under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$3,650.00
3 - 4$3,467.50
5 +$3,294.13

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Insertion Loss2.5 dB
Isolation15 dB
Power Handling+20 dBm
Bias±5 VDC/10 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-10 Waveguide
