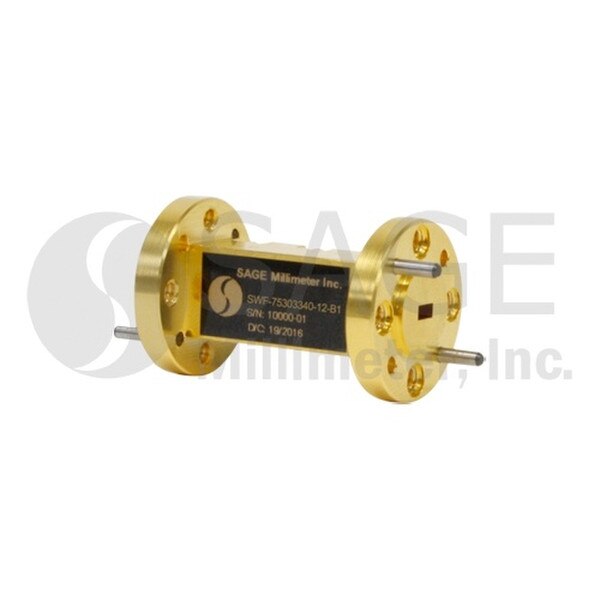

WR-12 Waveguide Bandpass Filter

73 to 76 GHz Passband, 40 dB Rejection from DC to 67 GHz and 82 to 100 GHz, E-Band
SKU:SWF-75303340-12-B1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWF-75303340-12-B1 is an E band waveguide bandpass filter with a passband frequency of 73 to 76 GHz and rejection frequencies from DC to 67 GHz and 82 to 100 GHz. The nominal insertion loss of the bandpass filter is 1.3 dB and the typical rejection is 40 dB. Since both low end and high end cut off frequencies can be selected by modifying the design, custom designs are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency73 GHz
Maximum Passband Frequency76 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side67 GHz
Minimum Rejection Frequency, High Side82 GHz
Maximum Rejection Frequency, High Side100 GHz
Rejection40 dB
Waveguide PortWR-12 Waveguide
