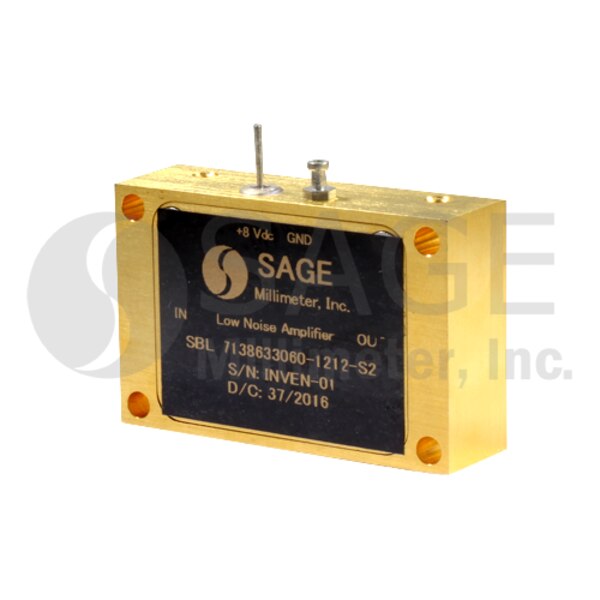

E-Band Low Noise Amplifier

71 to 86 GHz, 35 dB Gain, 4.0 dB Noise Figure, Right Angle WR-12 Waveguide
SKU:SBL-7138633540-1212-S1
Availability:2 to 3 Weeks ARO

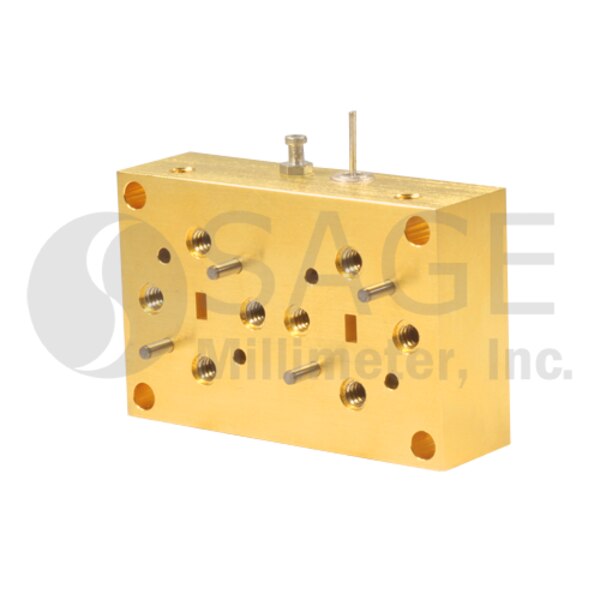

SBL-7138633540-1212-S1 is a low noise amplifier with a typical small signal gain of 35 dB and a nominal noise figure of 4 dB across the frequency range of 71 to 86 GHz. The DC power requirement for the amplifier is +8 VDC/100 mA. The mechanical configuration offers a right angle structure with WR-12 waveguides and UG-387/U flanges. Other port configurations, such as an in line structure with WR-12 waveguides or 1 mm connectors, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency71 GHz
Maximum Frequency86 GHz
Gain35 dB
Noise Figure4.0 dB
P1dB+5 dBm
Input Return Loss6 dB
Output Return Loss6 dB
DC Bias+8 VDC/100 mA
RF Input/OutputWR-12 Waveguide
