E-Band Diplexer

71 to 76 GHz Low Passband, 81 to 86 High Passband, 55 dB Rejection, WR-12 Waveguide
SKU:SWY-74384355-12-I1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

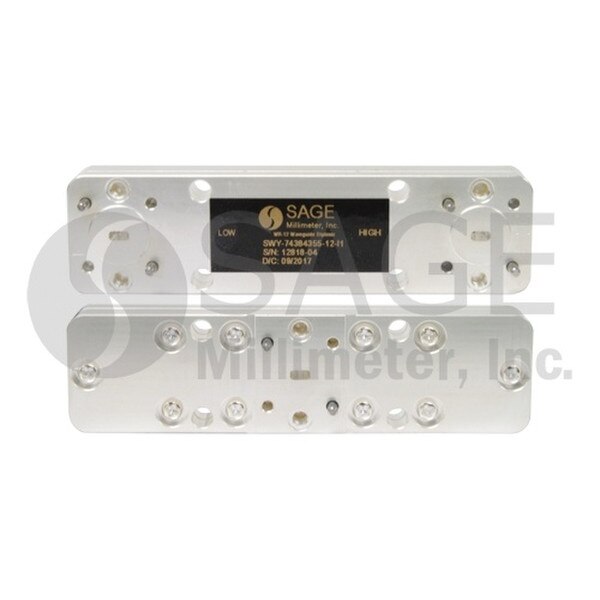

SWY-74384355-12-I1 is an E band, waveguide diplexer with a low passband of 71 to 76 GHz and a high passband of 81 to 86 GHz. The nominal insertion loss of the E band diplexer is 0.5 dB and the minimum isolation is 55 dB. Since both low and high passband frequencies can be changed by modifying the design, custom designs are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Low Passband Minimum Frequency71 GHz
Low Passband Maximum Frequency76 GHz
Insertion Loss0.5 dB
Rejection55 dB
High Passband Minimum Frequency81 GHz
High Passband Maximum Frequency86 GHz
Waveguide PortWR-12 Waveguide
