WR-10 Waveguide Lowpass Filter

70 to 118 GHz, 60 dB Rejection from DC to 59 GHz and 123 to 200 GHz, W-Band
SKU:SWF-12412460-10-L1
Availability:1 Week ARO

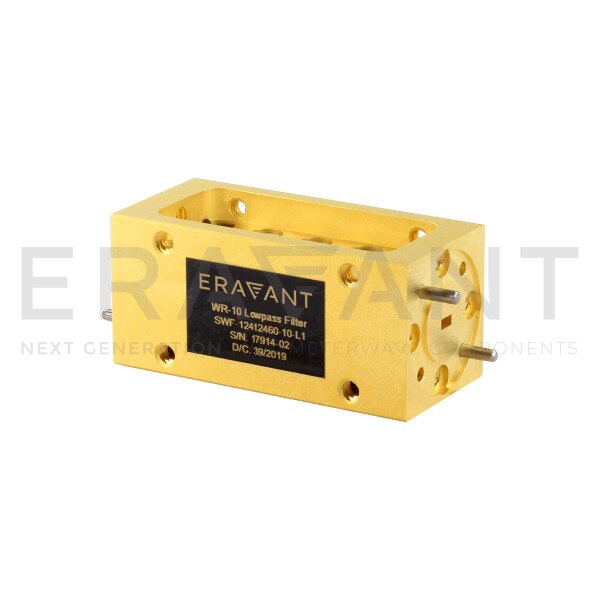

Model SWF-12412460-10-L1 is an W band waveguide lowpass filter with a passband frequency from 70 to 118 GHz and a rejection frequency from 123 to 200 GHz. Due to the corrugated design of the WR-10 waveguide, the filter also has a low side rejection frequency from DC to 59 GHz. As such, this filter can also be accepted as a bandpass filter. The filter provides a nominal insertion loss of 2.5 dB across its passband and a typical rejection of 60 dB. Since the high end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$2,750.00
3 - 4$2,612.50
5 +$2,481.88

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Passband Frequency70 GHz
Maximum Passband Frequency118 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side59 GHz
Minimum Rejection Frequency, High Side123 GHz
Maximum Rejection Frequency, High Side200 GHz
Rejection60 dB
Waveguide PortWR-10 Waveguide
