WR-112 Orthomode Transducer

7 to 10 GHz, 45 dB Isolation, 1.122" x 1.122" Square Waveguide Antenna Port
SKU:SAT-FH1122112-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

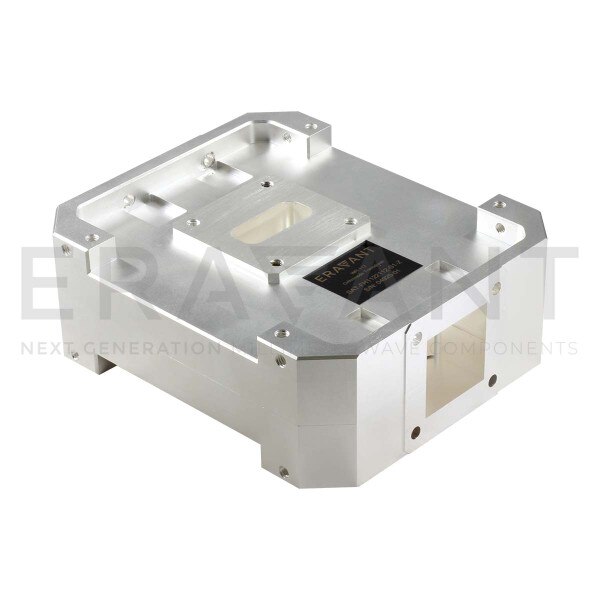

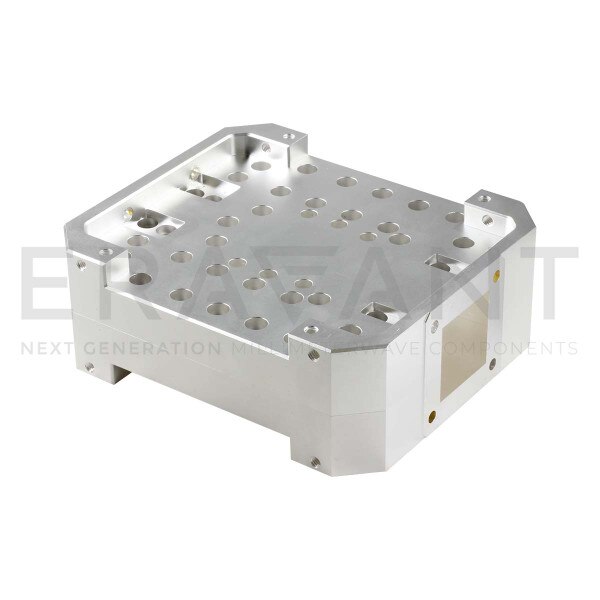

SAT-FH1122112-S1 is a WR-112 orthomode transducer (OMT) that operates from 7 to 10 GHz. The OMT separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform. The OMT supports either vertical or horizontal polarized waveforms with 45 dB typical port isolation. The OMT is configured with a 1.122” square antenna port and two WR-112 standard waveguide ports for the vertical and horizontal ports.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency7 GHz
Maximum Frequency10 GHz
Insertion Loss, Antenna to V Port0.5 dB
Insertion Loss, Antenna to H Port0.5 dB
Isolation45 dB
Antenna Port1.122" x 1.122" Square WG
Horizontal and Vertical PortsWR-112 WG
