K-Band Dual Channel, Doppler Sensor Module, Limited Run

+7 dBm Transmitting Power
SKU:SSM-24307-D1-1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should contact us for an alternative model. Read more about Limited Run Products here.

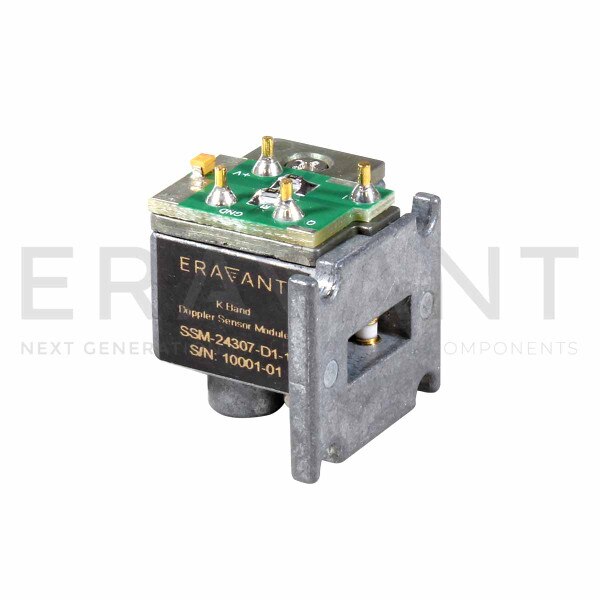

SSM-24307-D1-1 is a K Band Doppler sensor module that is designed and manufactured for short range measurements of a moving target's speed and direction. The sensor module has an operating frequency range of 24.05 to 24.2 GHz and takes a nominal bias of +5.0 VDC/250 mA. The sensor modules are configured with a T/R diplexer, a dual channel (I/Q) receiver and a transmitter/receiver oscillator in a die-cast housing. Sensor modules with a single receiver are offered under model number SSM-24307-S1-1 and can only detect the speed of a moving target.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 99 $85.00
100 - 249 $55.00
250 +$36.50

Bulk Availability

QuantityAvailability
1 - 5In Stock

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency24.125 GHz
Transmitting Power+7 dBm
Minimum IF FrequencyDC
Maximum IF Frequency100 MHz
Frequency Stability-0.8 MHz/°C
Power Stability-0.03 dB/°C
DC Bias+5 VDC/250 mA
ChannelDual
