E-Band Reflective SP4T Solid State Switch

69 to 77 GHz, 30 dB Isolation, WR-12 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

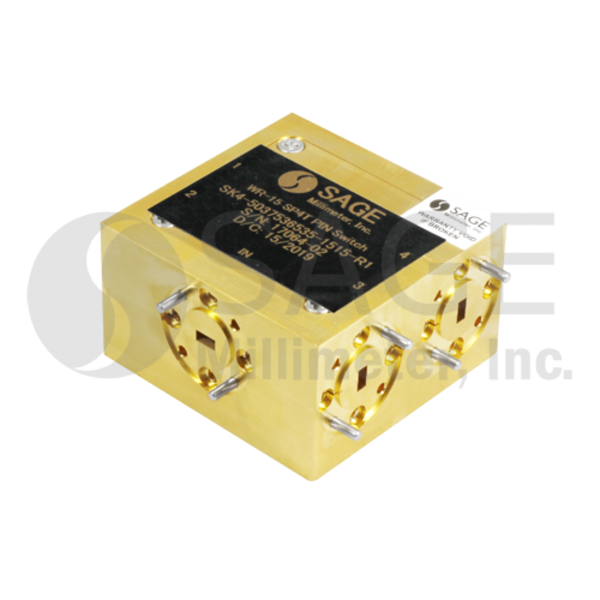

SK4-6937738030-1212-R1-M is a MMIC based, solid state single pole, four throw (SP4T), reflective type switch with a TTL driver that operates between 69 and 77 GHz. This model offers a small form factor by integrating the switch and driver into a common housing and achieves a low insertion loss by minimizing circuit loss transmission losses. The SP4T switch offers 30 dB port-to-port isolation with a switching speed of up to 100 nanoseconds. The input and output connectors of the switch are WR-12 waveguides with standard UG-387/U-M Anti-Cocking Flanges.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,250.00
3 - 4 $4,037.50
5 - 9 $3,835.63

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency69 GHz
Maximum Frequency77 GHz
Insertion Loss8 dB
Isolation30 dB
Power Handling+20 dBm
Bias±5 VDC/30 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-12 Waveguide
