E-Band Externally Biased Balanced Mixer

60 to 90 GHz, DC to 30 GHz IF, +3 dBm LO Power, WR-12 Waveguide
SKU:SFB-12-E2
Availability:IN STOCKPlease contact us if you need more units than what is available online.
Select up to 4 products to compare.
Select up to 4 products to compare.

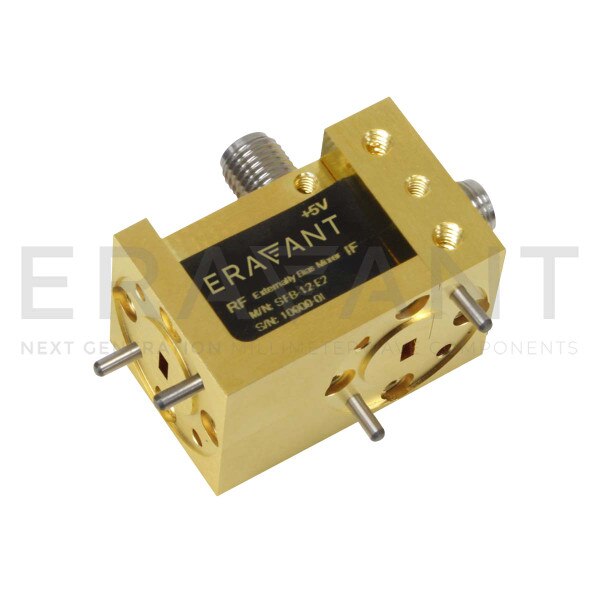

SFB-12-E2 is an E-Band, externally biased balanced mixer. The mixer supports the full waveguide band operation for both LO and RF frequencies from 60 to 90 GHz with an extremely broad IF output from DC to 30 GHz. The mixer offers a typical conversion loss of 9 dB. The externally biased mixer is used when high LO power is not available. Externally biased mixer works with low local oscillator (LO) power of 0 to +5 dBm when external bias of +5 VDC is applied. As a trade-off, LO to RF isolation is lower compared to non-biased mixers.

To prevent damage due to accidental over-bias or reverse bias, voltage regulator M/N SOR-05-SM-R1 is highly recommended.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency60 GHz
Maximum RF Frequency90 GHz
Minimum LO Frequency60 GHz
Maximum LO Frequency90 GHz
Minimum IF FrequencyDC
Maximum IF Frequency30 GHz
LO Pumping Power+3 dBm
RF PortWR-12 Waveguide
