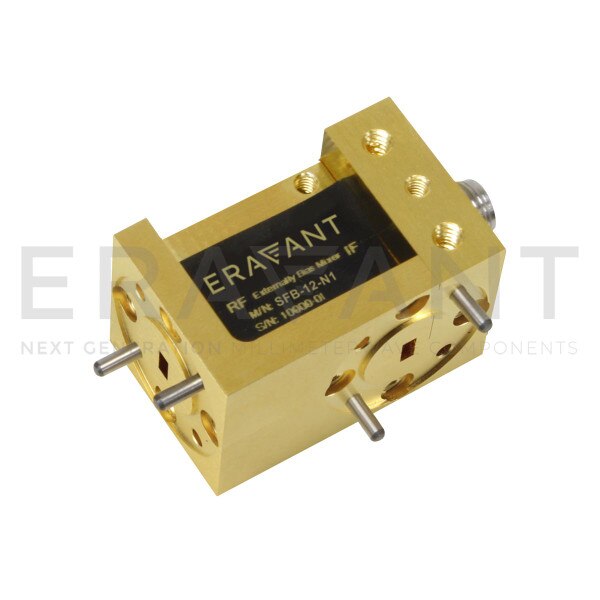

E-Band Balanced Mixer

60 to 90 GHz, DC to 30 GHz IF, +13 dBm LO Power, WR-12 Waveguide
SKU:SFB-12-N1
Availability:1 to 2 Weeks ARO
Select up to 4 products to compare.
Select up to 4 products to compare.
SFB-12-N1 is an E-Band balanced mixer that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. The E-Band balanced mixer supports the full waveguide band operation for both LO and RF frequencies from 60 to 90 GHz with an extremely broad IF output from DC to 30 GHz. The mixer offers a conversion loss of 9 dB typical and a high RF to LO port isolation of 30 dB.
ECCN: EAR99
    Login to view pricing

    Bulk Pricing

    Login to view pricing

    Technical Details

    Minimum RF Frequency60 GHz
    Maximum RF Frequency90 GHz
    Minimum LO Frequency60 GHz
    Maximum LO Frequency90 GHz
    Minimum IF FrequencyDC
    Maximum IF Frequency30 GHz
    LO Pumping Power+13 dBm
    RF PortWR-12 Waveguide
