E-Band Positive Amplitude Detector

60 to 90 GHz, 900 mV/mW Sensitivity, WR-12 Waveguide
SKU:SFD-603903-12SF-P1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

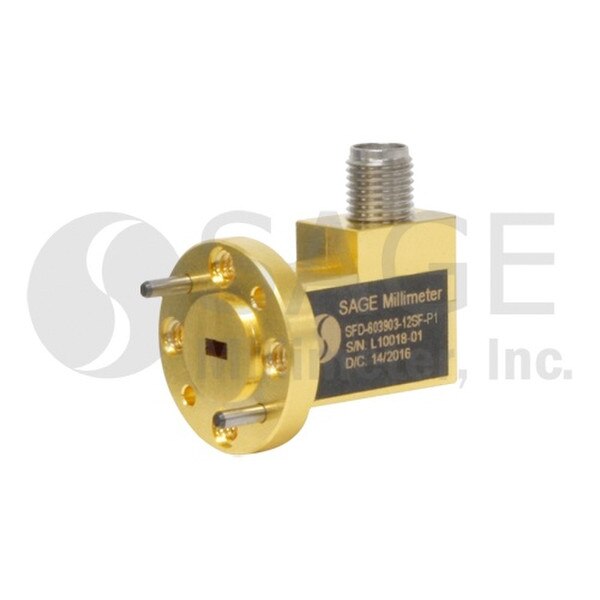

SFD-603903-12SF-P1 is an E Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics across the full waveguide operating bandwidth. The detector is designed to have a 10 MHz video bandwidth and a 1 MΩ video output impedance. The minimum detectable signal level is approximately -50 dBm. On the other hand, the return loss of this type of detector is poor in general. The model STD-12SF-PI is recommended if the high return loss is desired.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,400.00
5 - 9 $1,260.00
10 - 24 $1,134.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Sensitivity900 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityPositive
RF PortWR-12 Waveguide
DC PortSMA (F)
