WR-12 Waveguide Detector

60 to 90 GHz, 900 mV/mW Sensitivity, Positive Polarity, E-Band
Availability:3 to 5 Days ARO

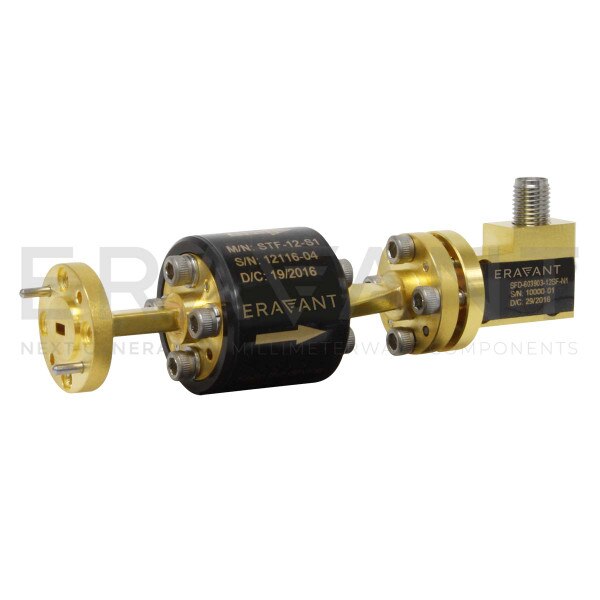

STD-12SF-PI is an E Band waveguide detector that covers the frequency range of 60 to 90 GHz. The detector is zero biased and intended for small signal detection and network analyzer applications. Due to the proprietary circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm. The Faraday isolator is integrated to improve the input port return loss.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Sensitivity900 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Return Loss15 dB
Output Voltage PolarityPositive
RF PortWR-12 Waveguide
