E-Band Manual Waveguide Switch, E-Plane

60 to 90 GHz, 50 dB Isolation, WR-12 Waveguide
SKU:SWJ-12-M1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

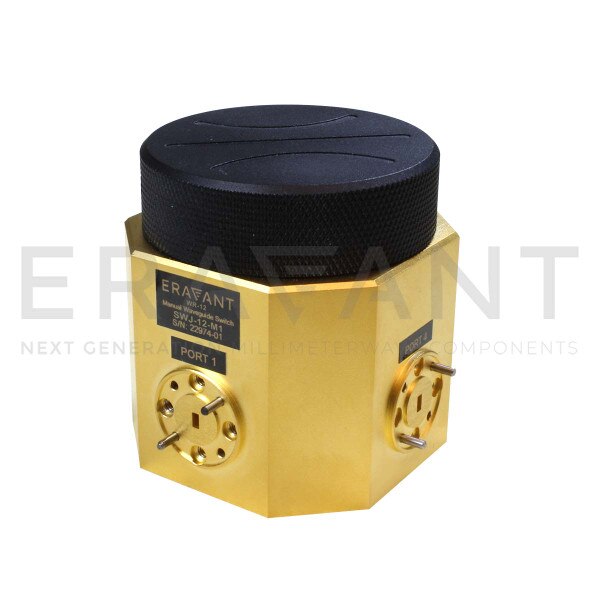

SWJ-12-M1 is a E-band manual waveguide switch that covers the frequency range of 60 to 90 GHz. The switch is a E-plane type, bi-directional, multi-path device with a 3-channel rotor which allows for switching between four distinct positions. The typical insertion loss and isolation are 0.6 dB and 50 dB, respectively. The RF ports are WR-12 waveguides with UG-387/U anti-cocking flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss0.6 dB
Isolation50 dB
Return Loss23 dB
Cycle Time-
Power Handling-
RF PortsWR-12 Waveguide
