E-Band Reflective SP4T Solid State Switch

60 to 90 GHz, 30 dB Isolation, WR-12 Waveguide
SKU:SK4-6039038030-1212-R1-M
Availability:1 Week ARO

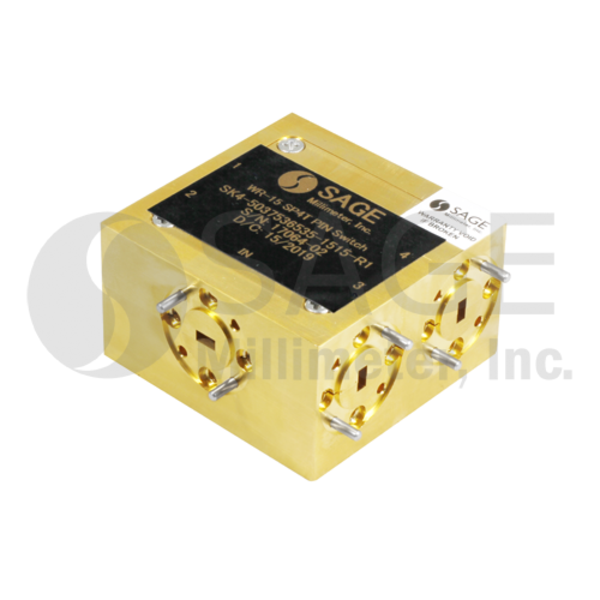

SK4-6039038030-1212-R1-M is a MMIC based, solid state single pole, four throw (SP4T), reflective type switch with a TTL driver that operates between 60 and 90 GHz. This model offers a small form factor by integrating the switch and driver into a common housing and achieves a low insertion loss by minimizing circuit loss transmission losses. The SP4T switch offers 30 dB port-to-port isolation with a switching speed of up to 100 nanoseconds. The input and output connectors of the switch are WR-12 waveguides with standard UG-387/U Anti-Cocking Flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 $4,650.00
2 $5,890.00
3 - 4$4,417.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss8 dB
Isolation30 dB
Power Handling+20 dBm
Bias±5 VDC/30 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-12 Waveguide
