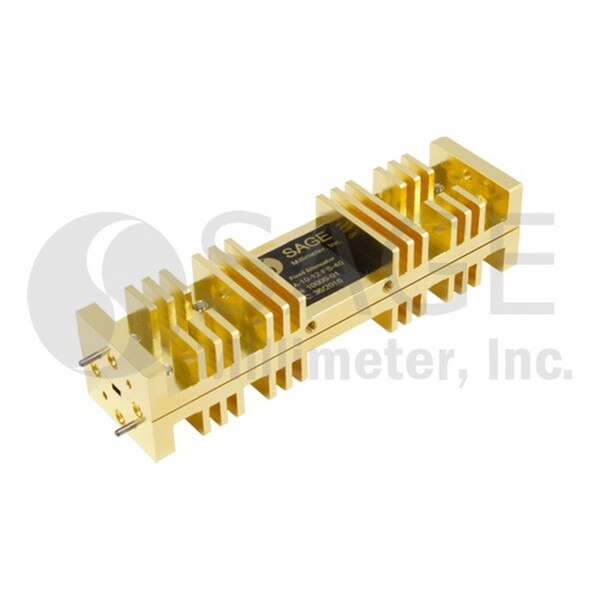

E-Band Fixed Attenuator

60 to 90 GHz, 3 dB, 10 Watt Power Handling, WR-12 Waveguide
SKU:STA-03-12-FS-40
Availability:4 to 6 Weeks ARO
STA-03-12-FS-40 is a 10 watt fixed attenuator that is used in millimeterwave systems and operates from 60 to 90 GHz. The attenuator has a fixed attenuation value of 3 dB at center frequency. While the attenuator is designed and fabricated for full waveguide band applications, the attenuation value of this model does show a minor slope within the band due to its distinct mechanical configuration. Various attenuation values are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $1,020.00
5 - 9 $918.00
10 - 24 $826.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Attenuation3 dB @ 75 GHz
VSWR1.2
Power Handling10 W
RF PortWR-12 Waveguide
Attenuator TypeFixed
