E-Band Low Noise Amplifier

60 to 90 GHz, 17 dB Gain, 5.5 dB Noise Figure, In-line WR-12 Waveguide
Availability:2 to 3 Weeks ARO

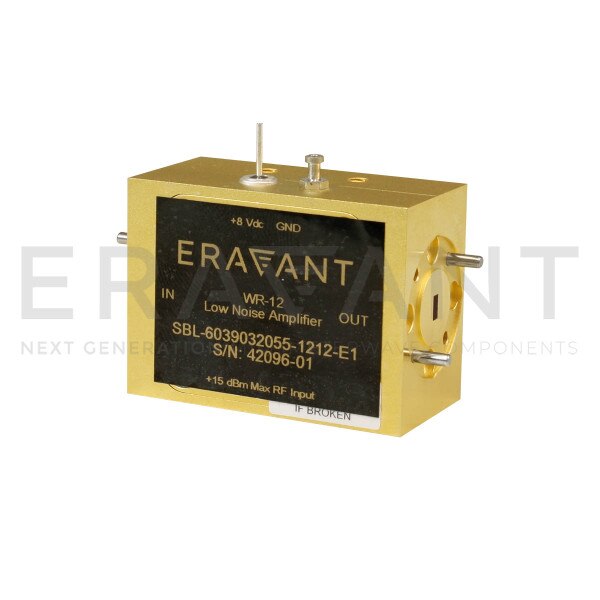

SBL-6039032055-1212-E1 is a low noise amplifier with a typical small signal gain of 17 dB and a nominal noise figure of 5.5 dB across the frequency range of 60 to 90 GHz. The DC power requirement for the amplifier is +8 VDC/80 mA. The mechanical configuration offers an in line structure with WR-12 waveguides and UG-387/U anti-cocking flanges. Other port configurations, such as with 1 mm connectors or a right angle structure with WR-12 waveguides, are also available under different model numbers.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Gain17 dB
Noise Figure5.5 dB
P1dB+7 dBm
Input Return Loss8 dB
Output Return Loss8 dB
DC Bias+8 VDC/80 mA
RF Input/OutputWR-12 Waveguide
