X6 Active Frequency Multiplier

60 to 90 GHz, +16 dBm Output Power, In-line WR-12 Waveguide, E-Band
SKU:SFA-603903616-12SF-E1
Availability:4 to 6 Weeks ARO

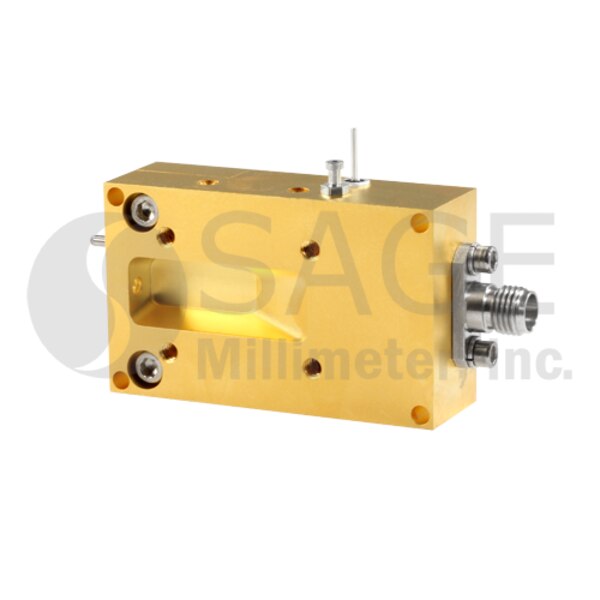

SFA-603903616-12SF-E1 is an active X6 frequency multiplier. The multiplier has an input frequency of 10 to 15 GHz with a typical input power of +3 dBm and an output frequency of 60 to 90 GHz with a typical output power of +16 dBm. The multiplier also has a typical harmonic suppression of -20 dBc. The DC power requirement for the multiplier is +8 VDC/650 mA. The input port configuration is a female SMA connector and the output is a WR-12 waveguide with a UG-387/U anti-cocking flange. Other port configurations are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 1$5,100.00
2 - 2$4,845.00
3 +$4,602.75

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Output Frequency60 GHz
Maximum Output Frequency90 GHz
Output Power+16 dBm
Minimum Input Frequency10 GHz
Maximum Input Frequency15 GHz
Input Power+3 dBm
DC Bias+8 VDC/650 mA
Output PortWR-12 WG
Input PortSMA (F)
