3-Port Directional Coupler

60 to 90 GHz, 10 dB Coupling, 40 dB Directivity, WR-12 Waveguide, E-Band
SKU:SWD-1040H-12-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

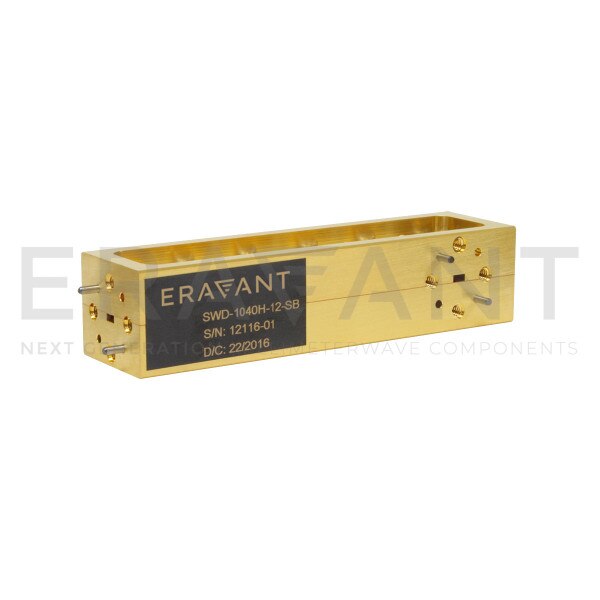

SWD-1040H-12-SB is an E band, three-port waveguide directional coupler that delivers a 10 dB nominal coupling level and 30 dB minimum directivity across the full waveguide band from 60 to 90 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-12 waveguides with UG-387/U anti-cocking flanges. Custom coupling levels are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss0.8 dB
Coupling10 dB
Directivity40 dB
VSWR1.1
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-12 WG
