3-Port Directional Coupler

60 to 90 GHz, 10 dB Coupling, 30 dB Directivity, WR-12 Waveguide, E-Band
SKU:SWD-1030E-12-SW
Availability:1 Week ARO

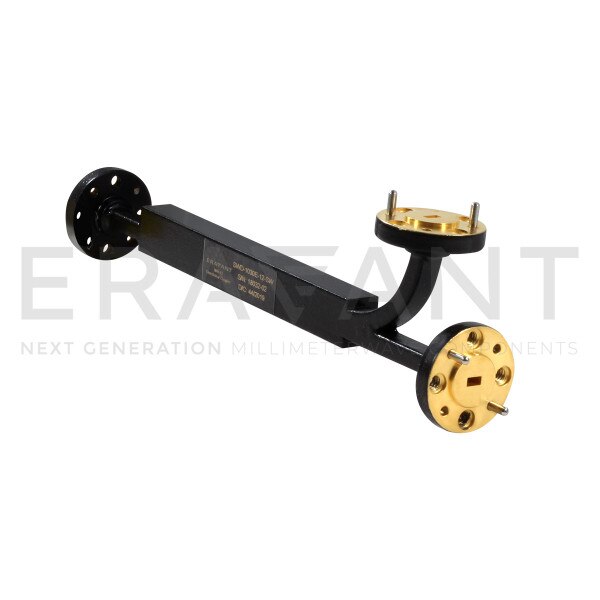

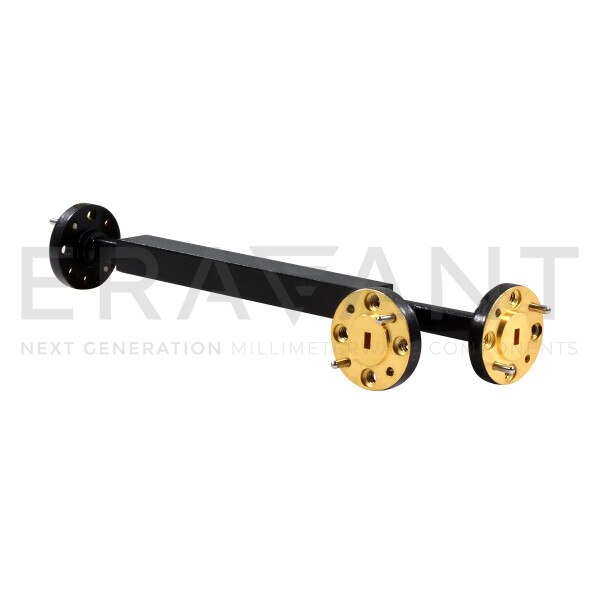

SWD-1030E-12-SW is an E band, three-port waveguide directional coupler that delivers a 10 dB nominal coupling level and 30 dB typical directivity across the full waveguide band from 60 to 90 GHz. The three-port coupler uses E-plane coupling and features a traditional multi-hole and waveguide design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-12 waveguides with UG-387/U flanges. Custom coupling levels are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,050.00
5 - 9$945.00
10 - 24$850.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss1.0 dB
Coupling10 dB
Directivity30 dB
VSWR1.1
Coupler Type3-Port Multi-hole, Waveguide
RF PortsWR-12 WG
