3-Port Directional Coupler, Limited Run

60 to 90 GHz, 10 dB Coupling, 30 dB Directivity, H-Plane Type, WR-12 Waveguide, E-Band
SKU:SWD-1030H-12-SW
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should contact us for an alternative model. Read more about Limited Run Products here.

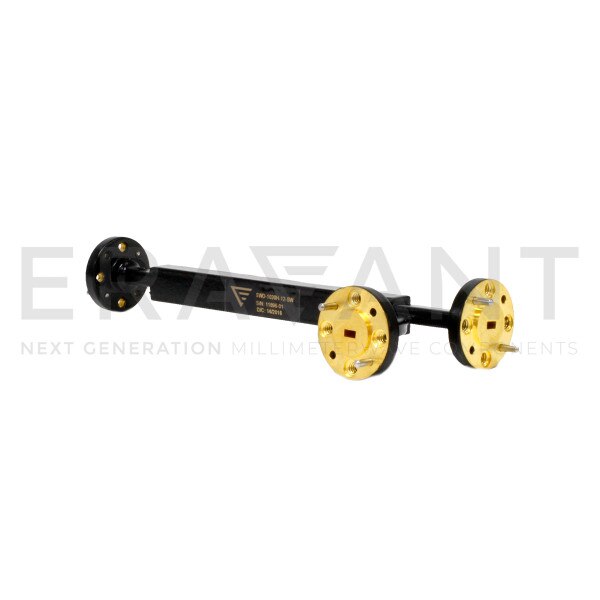

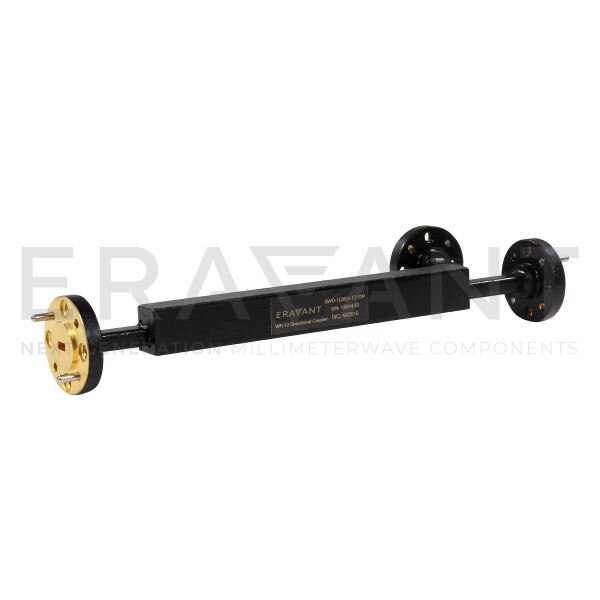

SWD-1030H-12-SW is an E band, three-port waveguide directional coupler that delivers a 10 dB nominal coupling level and 30 dB typical directivity across the full waveguide band from 60 to 90 GHz. The three-port coupler uses H-plane coupling and features a traditional multi-hole and waveguide design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-12 waveguides with UG-387/U flanges. Custom coupling levels are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Insertion Loss1.0 dB
Coupling10 dB
Directivity30 dB
VSWR1.1
Coupler Type3-Port Multi-hole, Waveguide
RF PortsWR-12 WG
