WR-15 Waveguide Compact Bandpass Filter

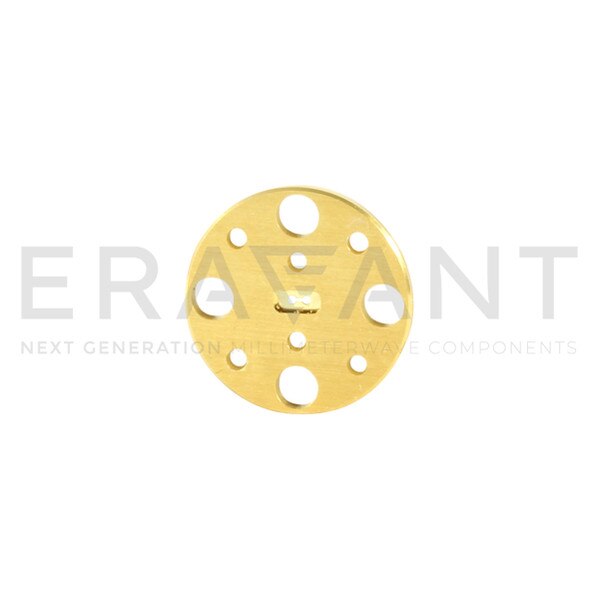

SWF-60302112-15-B1-C is a V band iris resonance based compact bandpass filter with a passband center frequency of 60 GHz and rejection frequency at 120 GHz. It is designed for any oscillator with an output waveguide of WR-15 with a UG-385/U flange pattern to pass the fundamental frequency at 60 GHz and reject the second harmonic at 120 GHz. The nominal insertion loss of the filter at 60 GHz is 0.5 dB and the rejection at 120 GHz is 12 dB.
