6-Way Coaxial Power Splitter

6 to 40 GHz, 2.92 mm (F)

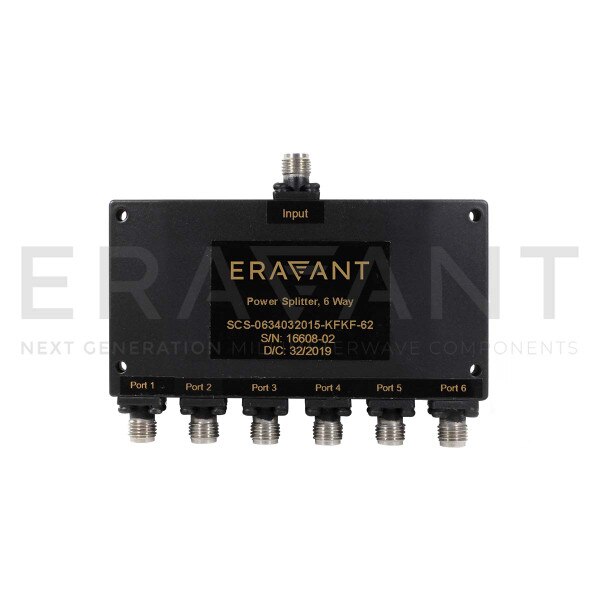

SCS-0634032015-KFKF-62 is a coaxial 6-way power splitter with a typical insertion loss of 2.0 dB at each output port and a typical isolation of 15 dB across the frequency range of 6 to 40 GHz. The power splitter has a nominal power handling of 20 W (CW) and a typical amplitude unbalance of ±0.6 dB. The return loss for all ports is 10 dB typical. The RF connectors of the power splitter are female 2.92 mm (K) connectors.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency6 GHz
Maximum Frequency40 GHz
Insertion Loss2.0 dB
Port Isolation15 dB
Return Loss10 dB
Impedance50 Ohms
RF Connectors2.92 mm (F)
