Ka-Band Microstrip Patch Array Antenna

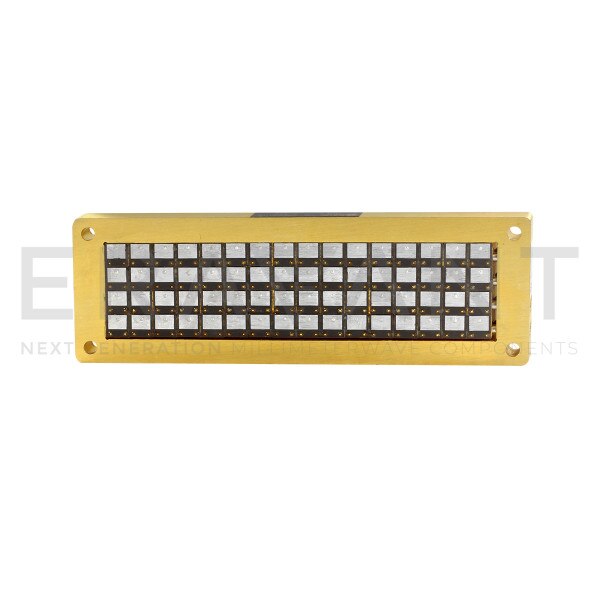

SAM-3934030695-DM-L1-32C is a linearly polarized, 4 x 8, 39 GHz microstrip patch array antenna. The antenna implements 32 individual antenna ports for beamforming and MIMO applications can be achieved via various individual input signal definitions. The individual patch antenna element is modularly designed and has a gain of 6 dBi and a typical vertical beamwidth of 50 degrees and horizontal beamwidth of 95 degrees respectively. The combined gain of the array is 21 dBi when the elements are fed with equal amplitude and phase signals. The antenna is constructed with a high performance, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is 32 SMPS (M) coaxial connectors.
