Ka-Band Microstrip Patch Array Antenna

6 dBi Gain, 28 GHz, 50 x 95° Beamwidth, SMPM (M) Connector, 4 x 16
SKU:SAM-2832830695-DM-L1-64C

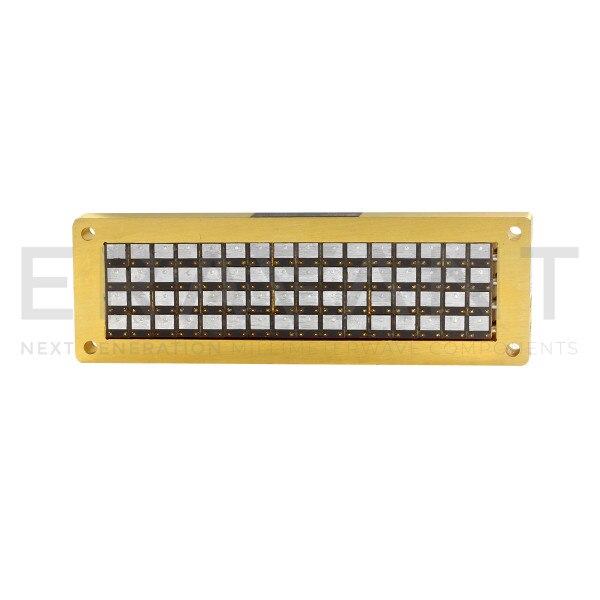

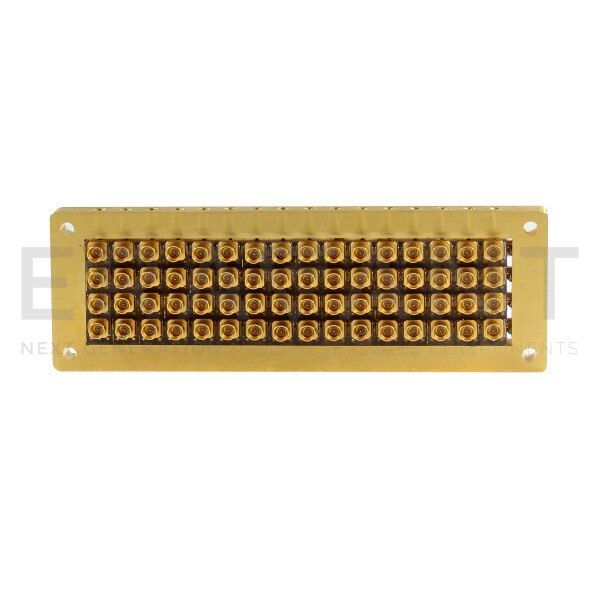

Model SAM-2832830695-DM-L1-64C is a linearly polarized, 4 x 16, 28 GHz microstrip patch array antenna. The antenna implements 64 individual antenna ports for beamforming and MIMO applications can be achieved via various individual input signal definitions. The individual patch antenna element is modularly designed and has a gain of 6 dBi and a typical vertical beamwidth of 50 degrees and horizontal beamwidth of 95 degrees respectively. The combined gain of the array is 24 dBi when the elements are fed with equal amplitude and phase signals. The antenna is constructed with a high performance, low loss soft microwave substrate to achieve the best performance in the class. The RF interface is 64 SMPM (M) coaxial connectors. 1x32 configuration can be found under model number SAM-2832830695-DM-L1-32C-1.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency27.9 GHz
Maximum Frequency28.1 GHz
Gain6 dBi
3 dB Beamwidth (Vertical, Horizontal)50°, 95°
Side Lobe Level-12 dB
Return Loss6.0 dB
PolarizationLinear
Antenna PortSMPM (M)
