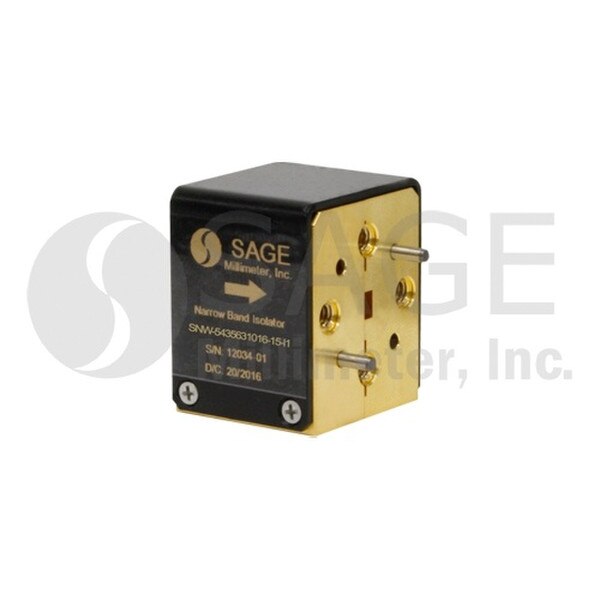

V-Band Junction Isolator

54 to 56 GHz, 16 dB Isolation, WR-15 Waveguide
SKU:SNW-5435631016-15-I1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SNW-5435631016-15-I1 is a V band, waveguide junction isolator that covers the frequency range of 54 to 56 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 1.0 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a typical isolation of 16 dB. The input and output ports are WR-15 waveguides with UG-385/U flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $930.00
10 - 24 $837.00
25 - 49 $753.30

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency54 GHz
Maximum Frequency56 GHz
Insertion Loss1.0 dB
Isolation16 dB
VSWR1.4
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-15 Waveguide
Device TypeIsolator
