WR-03 Cassegrain Antenna

53 dBi, 220 to 330 GHz, 9" Reflector Diameter, WR-03 Waveguide
SKU:SAY-2243345303-03-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
Select up to 4 products to compare.
Select up to 4 products to compare.

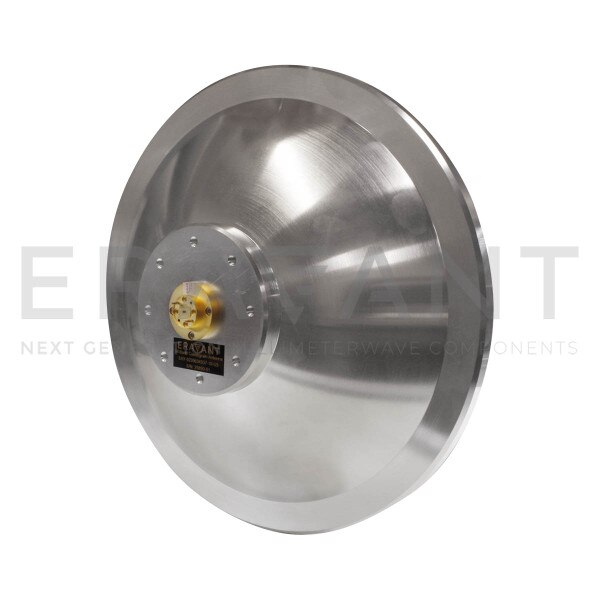

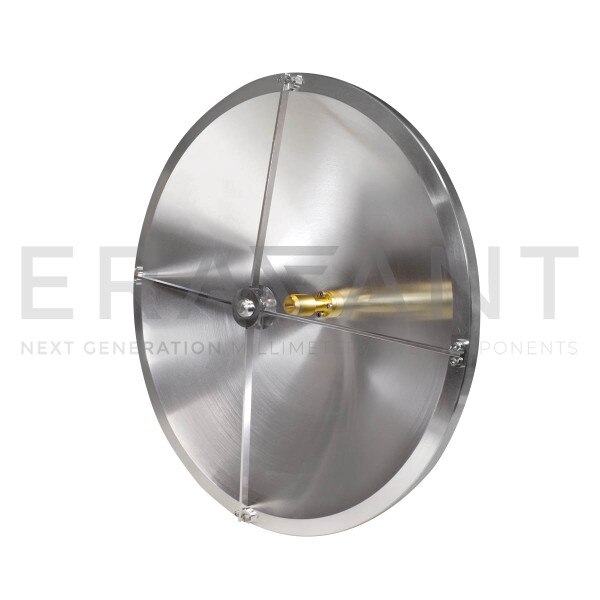

SAY-2243345303-03-S1 is a WR-03 Cassegrain antenna that offers a nominal gain of 53 dBi and a typical half power beamwidth of 0.3 degrees from 220 to 330 GHz. The aluminum reflector offers a lightweight and rugged mechanical structure and is treated with a chem film conversion coating for corrosion resistance. A diagonal horn is used to provide optimal feed efficiency, low side lobes, high cross-pol rejection, and uniform illumination. The antenna port is a WR-03 waveguide with UG-387/U-M anti-cocking flange and can support linear polarized waveforms.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency220 GHz
Maximum Frequency330 GHz
Gain53 dBi
3 dB Beamwidth0.3°
Return Loss15 dB
PolarizationLinear
Antenna PortWR-03 Waveguide
