U-Band Mechanically Tuned Gunn Oscillator with Isolator

51 GHz, ±1.00 GHz Tuning Bandwidth, +16 dBm Output Power, WR-19 Waveguide

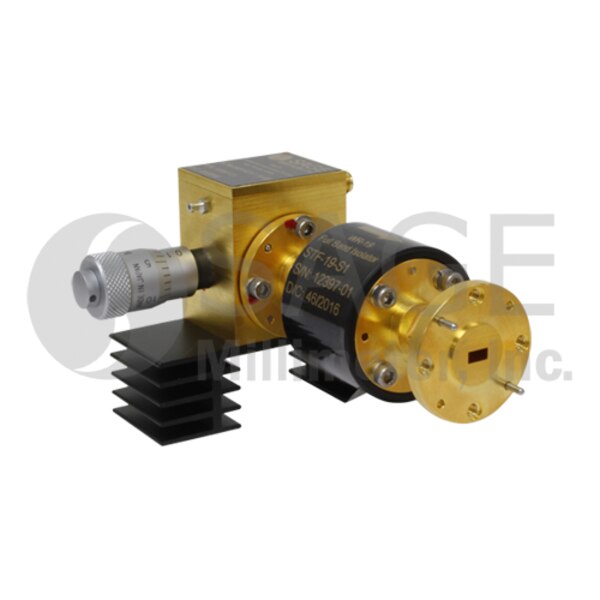

SOM-51302315-19-MI is a U-Band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +15 dBm minimum power. The oscillator features a frequency tuning range of 50 to 52 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. In addition, this model features an integrated isolator to achieve a more stable performance. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a micrometer for quick frequency tuning and test bench applications. Models with a self-locking set screw for system integration are available under a different model number. The performance of the oscillator can be further enhanced by adding a Gunn oscillator modulator/regulator and temperature heater.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency51 GHz
Output Power+16 dBm
Mechanical Tuning Range±1000 MHz
Bias Tuning Range (+4.0 to +5.0 VDC)±10 MHz
Bias+4.2 VDC/700 mA
RF PortWR-19 Waveguide
Mechanical TuningMicrometer
