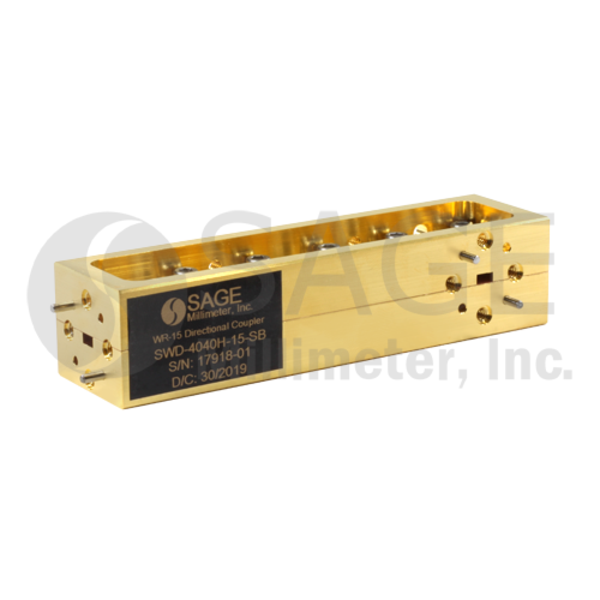

3-Port Directional Coupler

50 to 85 GHz, 10 dB Coupling, 40 dB Directivity, WR-15 Waveguide, V-Band
SKU:SWD-5038531040H-15-SB
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWD-5038531040H-15-SB is a V band, three-port waveguide directional coupler that delivers a 10 dB nominal coupling level and 30 dB minimum directivity across the full waveguide band from 50 to 85 GHz. The three-port coupler uses a traditional multi-hole and split block design to achieve a flat coupling level, high directivity, and low insertion loss. The interfaces of the coupler are WR-15 waveguides with UG-385/U flanges. Custom coupling levels are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency85 GHz
Insertion Loss0.7 dB
Coupling10 dB
Directivity40 dB
Return Loss20 dB
Coupler Type3-Port Multi-hole, Split-block
RF PortsWR-15 WG
