V-Band Manual Waveguide Switch, E-Plane

50 to 75 GHz, 60 dB Isolation, WR-15 Waveguide
SKU:SWJ-15-M1

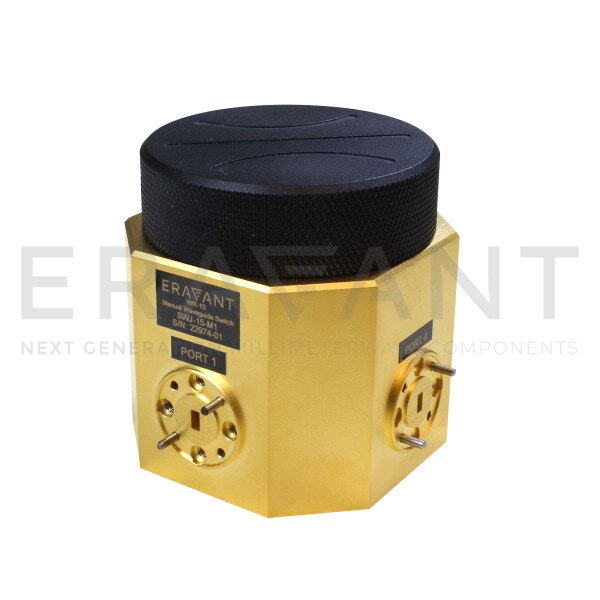

SWJ-15-M1 is a V-band manual waveguide switch that covers the frequency range of 50 to 75 GHz. The switch is a E-plane type, bi-directional device which allows clockwise and anti-clockwise switching between two through ports and two adjacent ports. The typical insertion loss and isolation are 0.4 dB and 60 dB, respectively. The RF ports are WR-15 waveguides with UG-385/U anti-cocking flanges. An H-plane version of the switch is offered under model SWJ-15-M1-H.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $2,050.00
5 - 9 $1,845.00
10 - 24 $1,660.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Insertion Loss0.4 dB
Isolation60 dB
Return Loss23 dB
Cycle Time-
Power Handling-
RF PortsWR-15 Waveguide
