V-Band Reflective SP4T PIN Diode Switch

50 to 75 GHz, 35 dB Isolation, WR-15 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

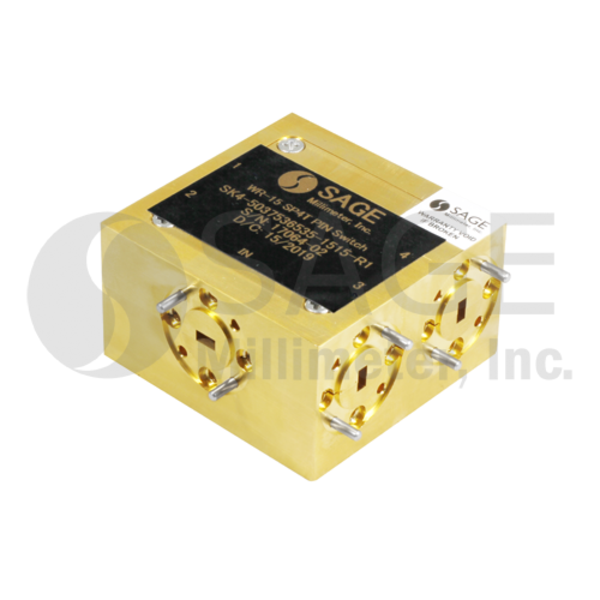

SK4-5037536535-1515-R1-M is a PIN diode based, single pole, four throw (SP4T) reflective switch with a TTL driver that operates between 50 and 75 GHz. This model offers a small form factor by integrating the switch and driver into a common housing and achieves a low insertion loss by minimizing high loss transmission. The SP4T switch offers 35 dB port-to-port isolation with a switching speed of up to 100 nanoseconds. The switch is configured with WR-15 waveguides and standard UG-385/U flanges at the input and outputs and a 10-pin male Molex connector to bias and control the TTL driver.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $4,250.00
3 - 4 $4,037.50
5 - 9 $3,835.63

Bulk Availability

1 In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Insertion Loss6.5 dB
Isolation35 dB
Power Handling+20 dBm
Bias±5 VDC/100 mA
Switching Speed100 ns
Switch TypeReflective
RF PortWR-15 Waveguide
