V-Band Low Noise Amplifier

50 to 75 GHz, 35 dB Gain, 5.0 dB Noise Figure, Right Angle WR-15 Waveguide
SKU:SBL-5037533550-1515-S1
Availability:1 to 2 Weeks ARO

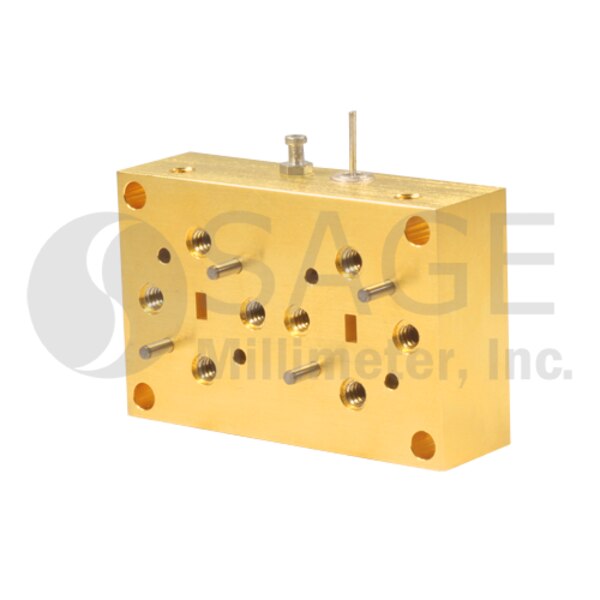

SBL-5037533550-1515-S1 is a low noise amplifier with a typical small signal gain of 35 dB and a nominal noise figure of 5 dB across the frequency range of 50 to 75 GHz. The DC power requirement for the amplifier is +8 VDC/150 mA. The mechanical configuration offers a right angle structure with WR-15 waveguides and UG-385/U flanges. Other port configurations, such as an in line structure with WR-15 waveguides or 1 mm connectors, are also available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$3,450.00
3 - 4$3,277.50
5 +$3,113.63

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Gain35 dB
Noise Figure5.0 dB
P1dB+11 dBm
Input Return Loss8 dB
Output Return Loss8 dB
DC Bias+8 VDC/150 mA
RF Input/OutputWR-15 Waveguide
