X4 Active Frequency Multiplier

50 to 75 GHz, +16 dBm Output Power, In-line WR-15 Waveguide, V-Band
SKU:SFA-503753416-15SF-E1
Availability:4 to 5 Weeks ARO

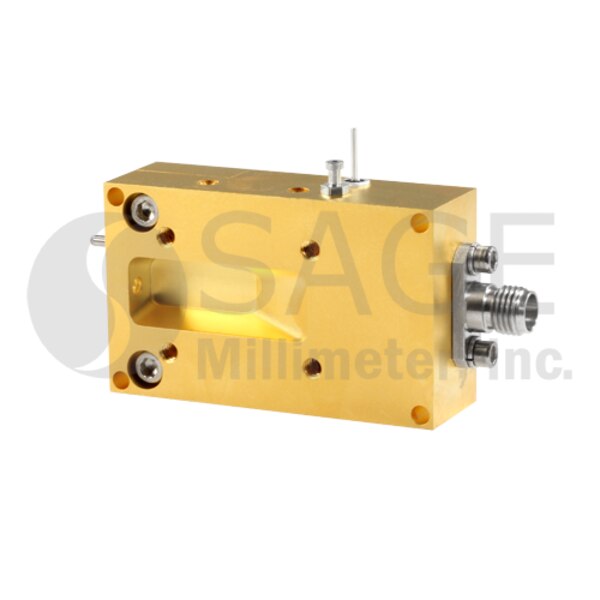

SFA-503753416-15SF-E1 is a V-Band active X4 frequency multiplier. The multiplier has an input frequency of 12.5 to 18.75 GHz with a typical input power of +5 dBm and an output frequency of 50 to 75 GHz with a typical output power of +16 dBm. The multiplier also has a typical harmonic suppression of -15 dBc. The DC power requirement for the multiplier is +8 VDC/550 mA. The input port configuration is an SMA(F) connector and the output is a WR-15 waveguide with a UG-385/U anti-cocking flange. Other port configurations are available under different models.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: 3A001.b.7.c.2
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Output Frequency50 GHz
Maximum Output Frequency75 GHz
Output Power+16 dBm
Minimum Input Frequency12.5 GHz
Maximum Input Frequency18.75 GHz
Input Power+3 dBm
DC Bias+8 VDC/550 mA
Output PortWR-15 WG
Input PortSMA (F)
