X4 Active Frequency Multiplier

50 to 75 GHz, +13 dBm Output Power, In-line WR-15 Waveguide, V-Band
SKU:SFA-503753413-15SF-E1
Availability:4 to 6 Weeks ARO

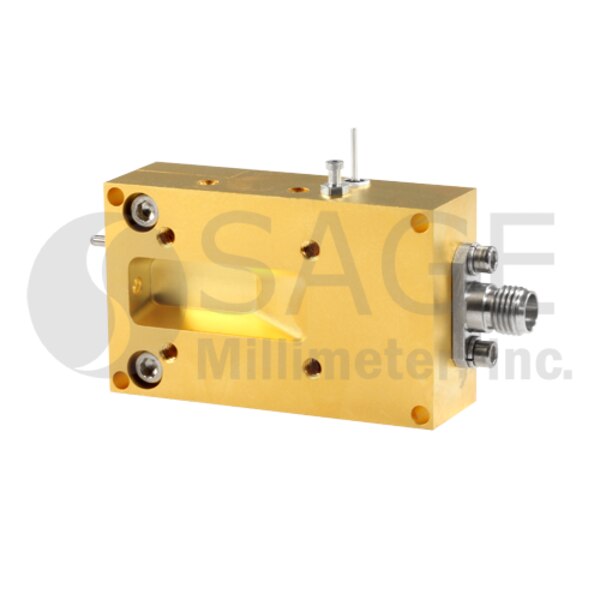

SFA-503753413-15SF-E1 is a V-Band active X4 frequency multiplier. The multiplier has an input frequency of 12.5 to 18.75 GHz with a typical input power of +3 dBm and an output frequency of 50 to 75 GHz with a typical output power of +13 dBm. The multiplier also has a typical harmonic suppression of -15 dBc. The DC power requirement for the multiplier is +8 VDC/550 mA. The input port configuration is an SMA (F) connector and the output is a WR-15 waveguide with a UG-385/U anti-cocking flange. Other port configurations are available under different models.
ECCN: 3A001.b.4.e.2
Login to View Pricing

Bulk Pricing

QuantityPrice
1 $5,200.00
2 $4,940.00
3 - 4$4,693.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Output Frequency50 GHz
Maximum Output Frequency75 GHz
Output Power+13 dBm
Minimum Input Frequency12.5 GHz
Maximum Input Frequency18.75 GHz
Input Power+3 dBm
DC Bias+8 VDC/550 mA
Output PortWR-15 WG
Input PortSMA (F)
