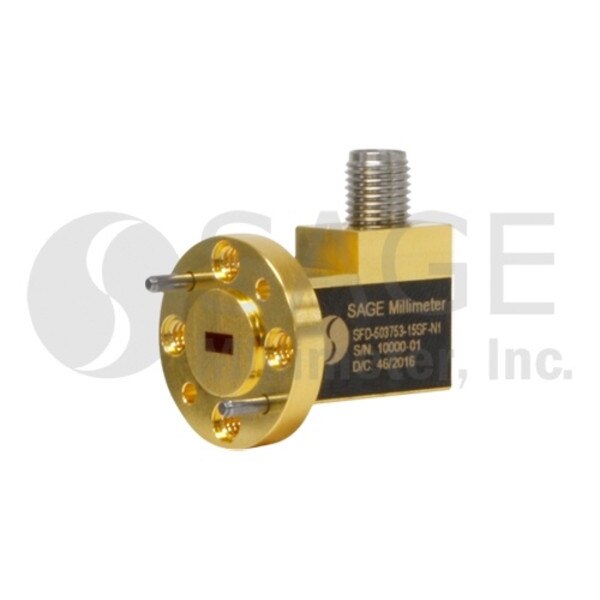

V-Band Negative Amplitude Detector

50 to 75 GHz, 1000 mV/mW Sensitivity, WR-15 Waveguide
SKU:SFD-503753-15SF-N1
Availability:1 Week ARO
SFD-503753-15SF-N1 is a V Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,400.00
5 - 9$1,260.00
10 +$1,134.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Sensitivity1000 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityNegative
RF PortWR-15 Waveguide
DC PortSMA (F)
