V-Band Direct Reading Attenuator, Product Discontinued

50 to 75 GHz, 0 to 60 dB, WR-15 Waveguide
SKU:STA-60-15-D1
Availability:Product Discontinued
This product has been improved and is now listed as STA-60-15-S1. Read more about Limited Run Products here.

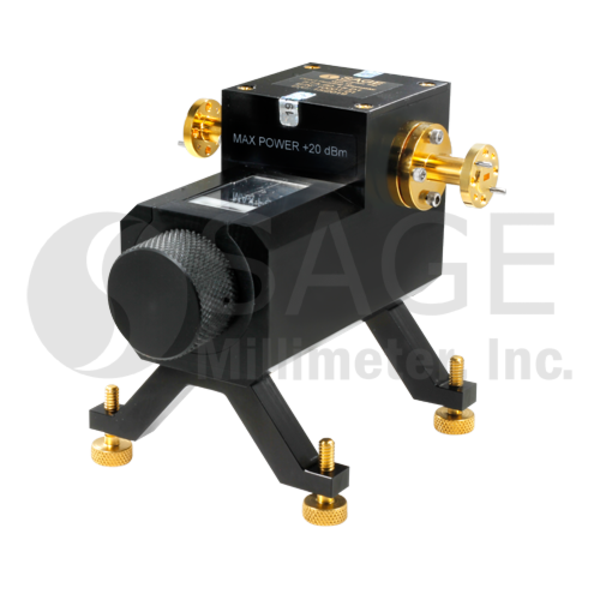

STA-60-15-D1 is a direct reading, rotary vane attenuator for use in millimeter wave systems across the standard V-band frequency range of 50 to 75 GHz. The attenuator has a large scale dial which indicates the attenuation value directly. The attenuator is an ideal piece of equipment in waveguide systems where a broad direct reading of attenuation is required. The attenuator exhibits 0.8 dB maximum insertion loss and up to 60 dB maximum attenuation. The accuracy of the attenuator is 0.1 dB or 3% of the reading, whichever is larger, up to 40 dB, 5% up to 50 dB, and "for reference only" above 50 dB.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency50 GHz
Maximum Frequency75 GHz
Attenuation0 to 60 dB
Return Loss20 dB
Power Handling0.3 W
RF PortWR-15 Waveguide
Attenuator TypeDigital Direct Reading
