Specialized Omnidirectional Antenna Mounting Fixture

5", Ka-Band
SKU:SAX-ME5000-C1
Availability:1 Week ARO

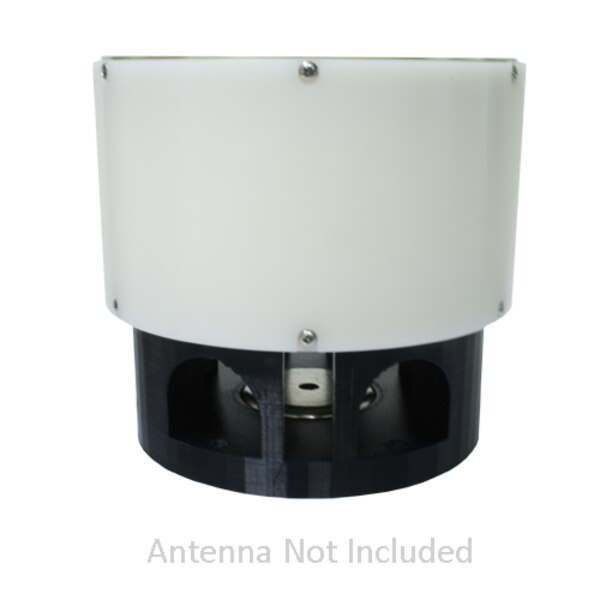

SAX-ME5000-C1 is a 5” diameter mounting fixture designed specifically for mounting the SAO-2734030810-28-S1 omnidirectional antenna along with a WR-28 right-angle waveguide to coax adapter (e.g. SWC-28KF-R1 or SWC-28KM-R1). The fixture features a magnet base with a ¼-20 threaded hole for convenient tripod mounting and 10-32 holes on the outer edge for non-tripod mounting. The fixture is designed and fabricated with durable and microwave friendly plastic material to offer minimum reflection.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$275.00
25 - 49$247.50
50 - 99$222.75

Bulk Pricing

Login to View Pricing

Technical Details

Flange-
