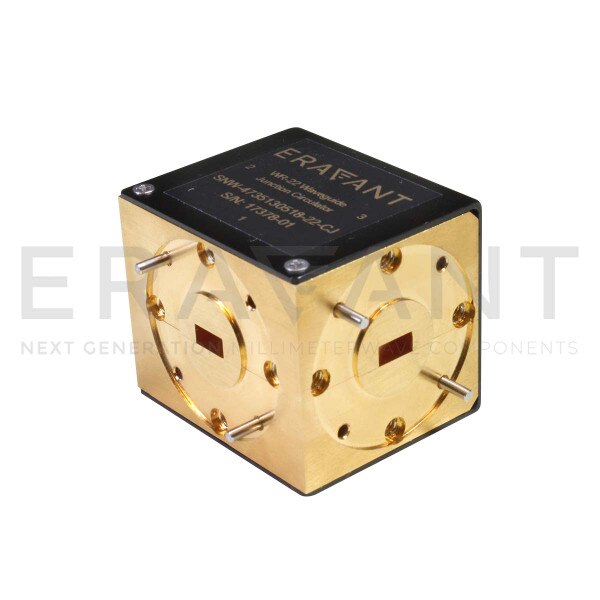

Q-Band Junction Circulator

47.2 to 51.4 GHz, 18 dB Isolation, WR-22 Waveguide
SKU:SNW-4735130518-22-CJ
Availability:4 to 6 Weeks ARO
SNW-4735130518-22-CJ is a Q band waveguide junction isolator that covers the frequency range of 47.2 to 51.4 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers an isolation of 18 dB typical. The input and output ports are WR-22 waveguides with UG-383/U flanges. Various configurations and frequency ranges are offered under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 9$880.00
10 - 24$792.00
25 - 49$712.80

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency47.2 GHz
Maximum Frequency51.4 GHz
Insertion Loss0.5 dB
Isolation18 dB
Return Loss19 dB
Forward Power Handling5 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-22 Waveguide
Device TypeCirculator
