WR-22 Waveguide Compact Bandpass Filter

45 GHz Passband Frequency, 13 dB Rejection, 90 GHz Rejection Frequency, Ka-Band
SKU:SWF-45301110-22-B1-C
Availability:IN STOCKPlease contact us if you need more units than what is available online.

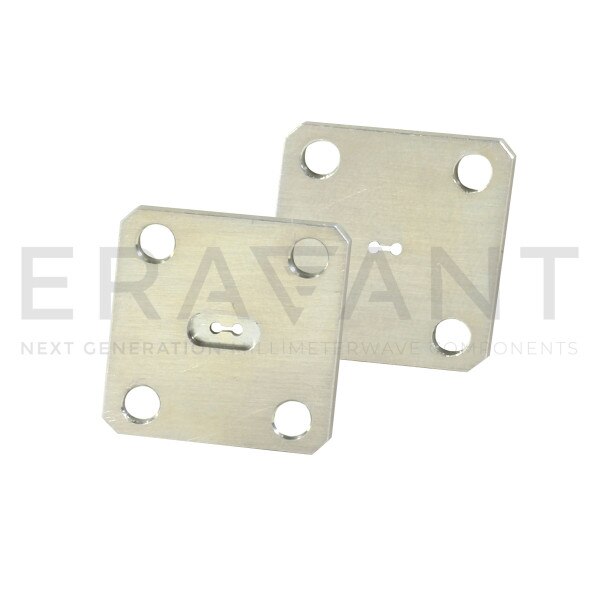

SWF-45301110-22-B1-C is a Q band iris resonance based compact bandpass filter with a passband center frequency of 45 GHz and rejection frequency at 90 GHz. It is designed for any oscillator with an output waveguide of WR-22 with a UG-599/U flange pattern to pass the fundamental frequency at 45 GHz and reject the second harmonic at 90 GHz. The nominal insertion loss of the filter at 45 GHz is 0.5 dB and the rejection at 90 GHz is 13 dB. This filter can be used with Eravant’s Q-band volume production oscillator with model number SOL-45316-22-G1 to suppress the second harmonic content at 90 GHz.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $195.00
25 - 49 $175.50
50 - 99 $157.95

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband Frequency43 GHz
Maximum Passband Frequency46 GHz
Rejection Frequency90 GHz
Rejection13 dB
Waveguide PortWR-22 Waveguide
