WR-28 Waveguide Monopulse Cassegrain Antenna

This item is oversized and will require special packaging. Pricing for a custom crate will be quoted separately.

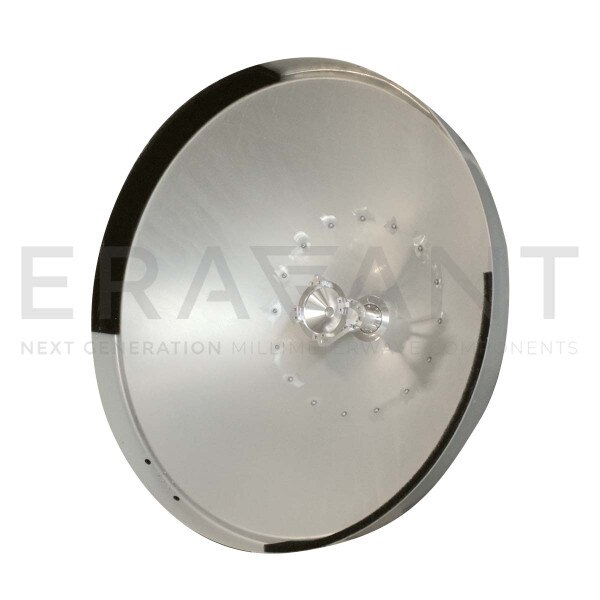

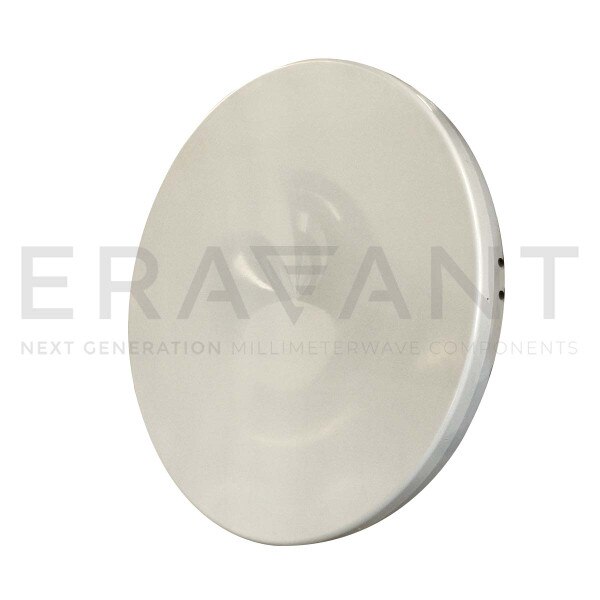

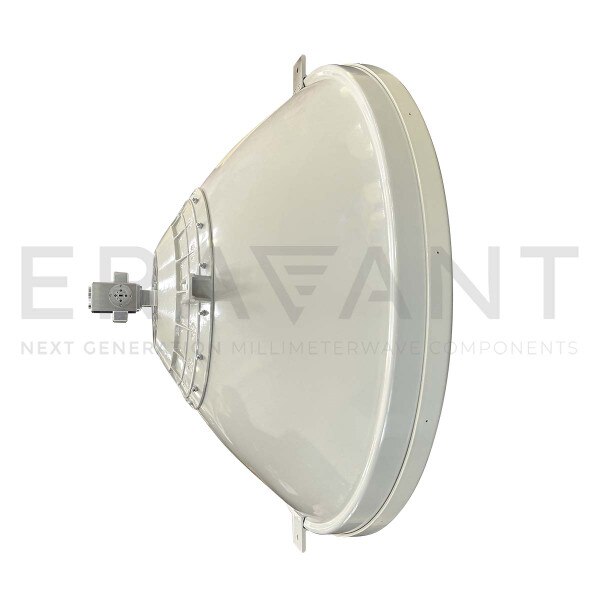

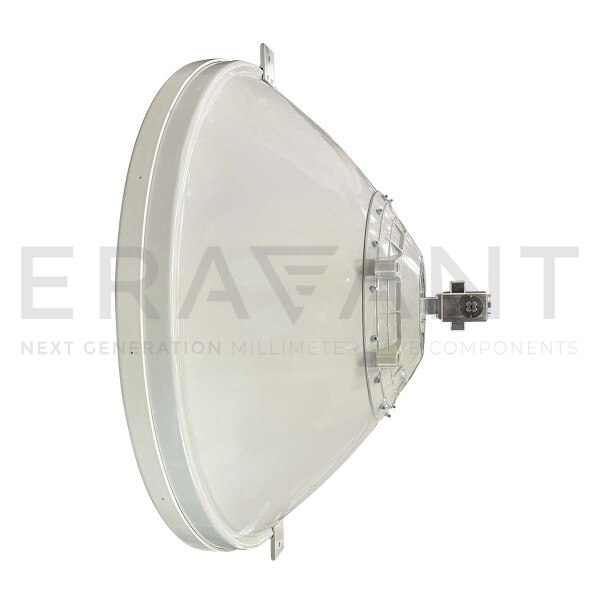

SAY-3433634506-28-S1-MP-WR is a weather resistant, monopulse Cassegrain antenna that operates from 34 to 36 GHz,and has a half power beamwidth of 0.6 degrees. The antenna offers a nominal gain of 45 dBi in the Sum Port, and 39 dBi in the H-Port and V-Port. The antenna has three WR-28 waveguides with UG-599/U compatible grooved flanges, which are designated as Sum Port, V-Port, and H-Port. The antenna comes with an inbuilt radome and enclosure for the feed system to make it weather resistant.The antenna can support linear polarized waveforms and is designed and manufactured for indoor and outdoor applications.
