F-Band Gaussian Optics Antenna

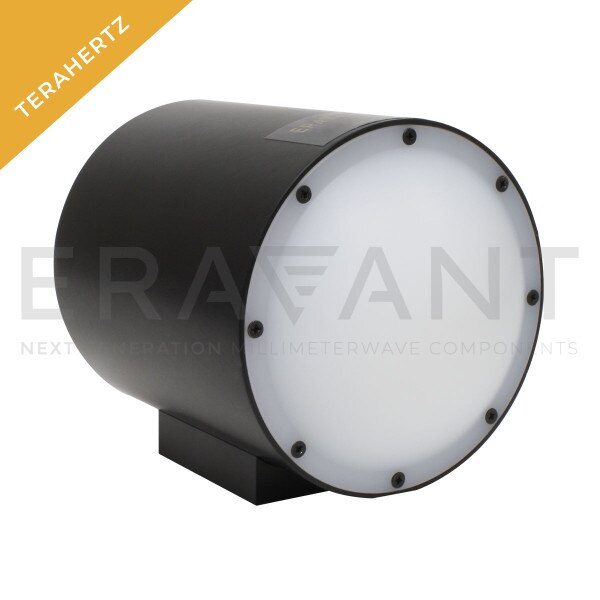

SAG-9031444401-08-S1 is a 6.0” (Ø) G-band Gaussian antenna that operates from 90 to 140 GHz. The Gaussian antenna delivers a 44 dBi nominal gain and 1° half power beamwidth. The antenna supports linear and circular polarized waveforms and employs a corrugated feed horn to offer excellent aperture efficiency, high cross polarization rejection, and low sidelobe levels. This model is equipped with a WR-08 rectangular waveguide and UG-387/U-M anti-cocking flange as its input port. By removing a mode transition, Eravant model number SWT-08094-SB, the input port becomes a 0.094” diameter circular waveguide, which can support linearly and circularly polarized waveforms.
