Q-Band Junction Isolator

42 to 46 GHz, 20 dB Isolation, WR-22 Waveguide
SKU:SNW-4234630620-22-IJ1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

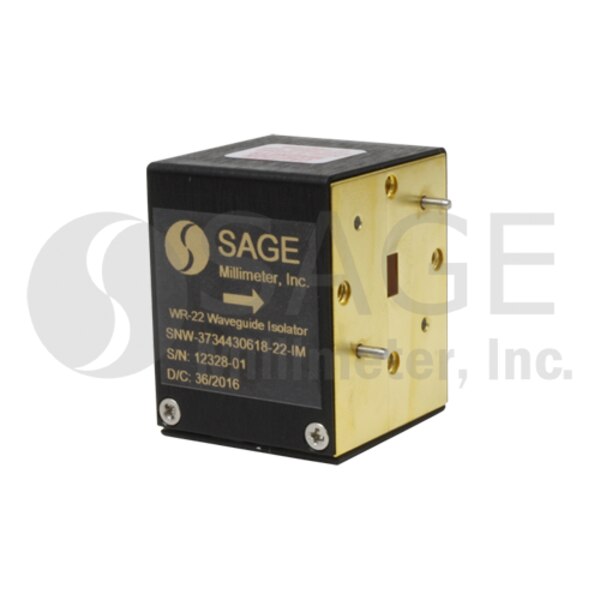

SNW-4234630620-22-IJ1 is a Q band waveguide junction isolator that covers the frequency range of 42 to 46 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.6 dB typical and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a minimum isolation of 15 dB. The input and output ports are WR-22 waveguides with UG-383/U flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $820.00
10 - 24 $738.00
25 - 49 $664.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency42 GHz
Maximum Frequency46 GHz
Insertion Loss0.6 dB
Isolation20 dB
Return Loss18 dB
Forward Power Handling10 W (CW)
Reverse Power Handling5 W (CW)
RF PortWR-22 Waveguide
Device TypeIsolator
