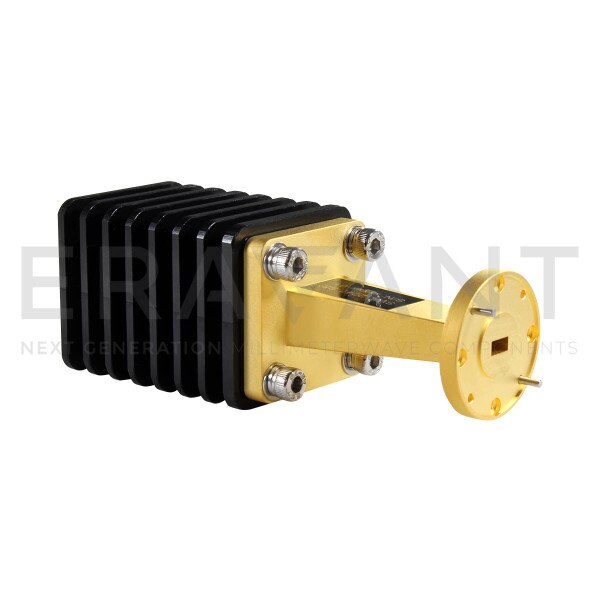

U-Band Fixed Termination Load

40 to 60 GHz, 50 W Power Handling, WR-19 Waveguide
SKU:SWL-1947-S8
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWL-1947-S8 is a high power, U-Band termination load that covers the frequency range of 40 to 60 GHz. The termination load exhibits a typical return loss of 25 dB and 50 Watts power handling capacity. It is designed and manufactured to offer a good match for high power test lab and system applications. Custom levels of power handling are offered under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $830.00
5 - 9 $750.00
10 - 24 $675.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Power Handling, Watts50 W
Power Handling, dBm47 dBm
Return Loss25 dB
Load TypeFixed
Waveguide PortWR-19 Waveguide
