U-Band Low Noise Amplifier with Uni-Guide™

40 to 60 GHz, 45 dB Gain, 4.0 dB Noise Figure, In-line WR-19 Waveguide
SKU:SBL-4036034540-1919-E1
Availability:3 to 5 Days ARO

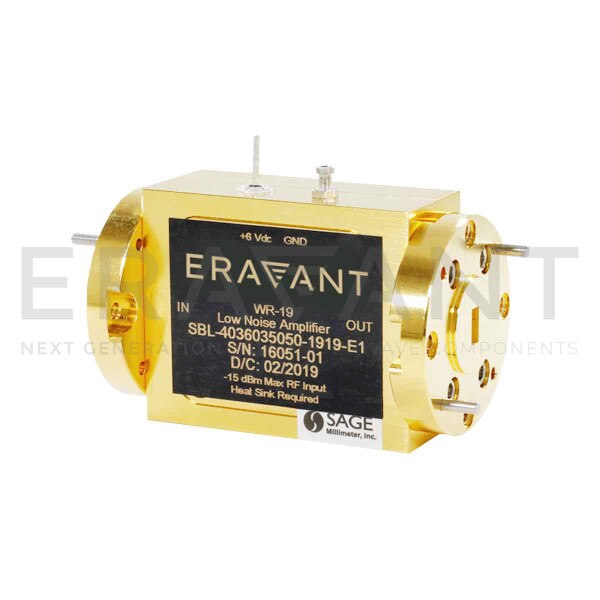

SBL-4036034540-1919-E1 is a low noise amplifier with a typical small signal gain of 45 dB across the frequency range of 40 to 60 GHz and a nominal noise figure of 4.0 dB. The DC power requirement for the amplifier is +8 VDC/400 mA. The mechanical configuration offers a in-line structure with WR-19 Uni-Guide™ waveguides. Other port configurations, such as a right angle structure with WR-19 waveguides or 1.85 mm connectors, are also available under different model numbers.

Your application may require a heatsink. Visit our Heatsink Blog for assistance with choosing an appropriate heatsink for use with this model.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Gain45 dB
Noise Figure4.0 dB
P1dB+16 dBm
Input Return Loss8 dB
Output Return Loss10 dB
DC BiasSolder Pin
RF Input/OutputWR-19 Uni-Guide™ Waveguide
