4 Way In-line Power Divider

40 to 60 GHz, 20 dB Port Isolation, WR-19 Waveguide, U-Band
SKU:SWP-40360304-19-E1-3
Availability:IN STOCKPlease contact us if you need more units than what is available online.

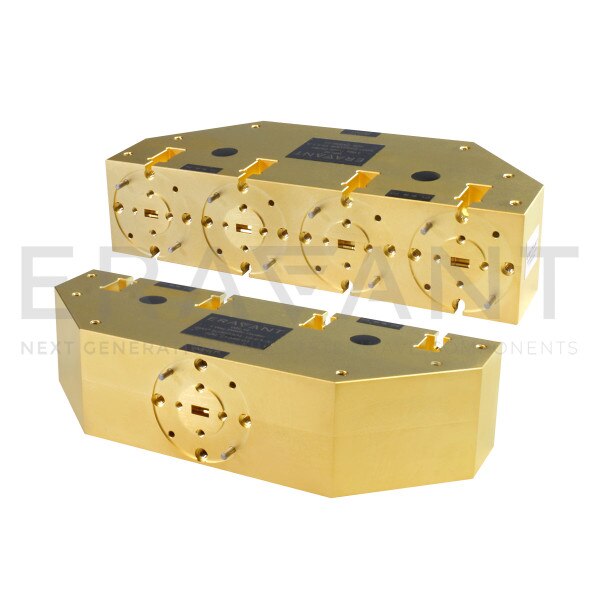

SWP-40360304-19-E1-3 is a full band WR-19, 4-way power divider that operates from 40 to 60 GHz. The power divider offers a typical insertion loss of 1.0 dB and typical isolation of 20 dB. All ports are well-balanced and in-phase for power dividing or combining applications across the band. The power divider is configured as an inline package with WR-19 waveguides and UG-383/U-M compatible anti-cocking flanges at all ports. The input or output port orientation can be converted from a H-plane to E-plane configuration by installing Eravant’s standard compact 90? twist, model SWB-19090-TB-C. A right angle, 4-way configuration is offered under model SWP-40360304-19-S1-3. Other power splitting options, such as 2-way, 8-way, and 16-way division, are available for both right-angle and inline configurations under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,650.00
5 - 9 $1,485.00
10 - 24 $1,336.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss1.0 dB
Port Isolation20 dB
Power Unbalance±0.3 dB
Input/Output Return Loss20 dB
Power Division4 Way
ConfigurationIn-line (180°)
Input/Output PortsWR-19 WG
