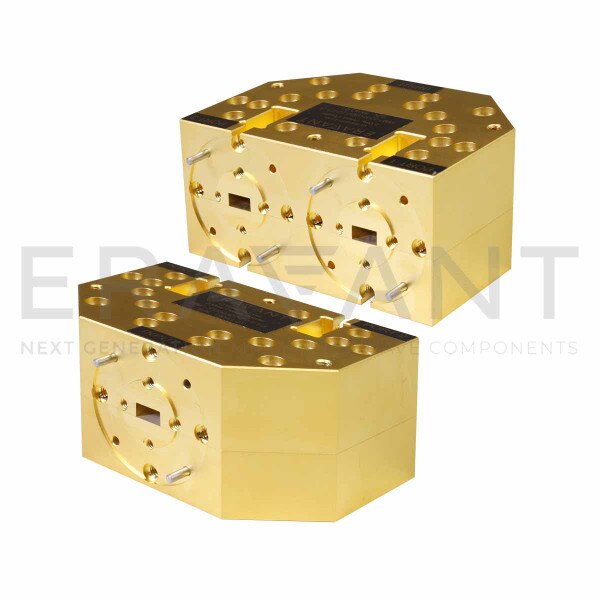

2 Way In-line Power Divider

40 to 60 GHz, 20 dB Port Isolation, WR-19 Waveguide, U-Band
SKU:SWP-40360302-19-E1-3
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SWP-40360302-19-E1-3 is a full band WR-19, 2-way power divider that operates from 40 to 60 GHz. The power divider offers a typical insertion loss of 0.3 dB and typical isolation of 20 dB. All ports are well-balanced and in-phase for power dividing or combining applications across the band. The power divider is configured as an inline package with WR-19 waveguides and UG-383/U-M compatible anti-cocking flanges at all ports. The input or output port orientation can be converted from a H-plane to E-plane configuration by installing Eravant’s standard compact 90? twist, model SWB-19090-TB-C. A right angle, 2-way configuration is offered under model SWP-40360302-19-S1. Other power splitting options, such as 4-way, 8-way, and 16-way division, are available for both right-angle and inline configurations under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $820.00
10 - 24 $738.00
25 - 49 $664.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Insertion Loss0.3 dB
Port Isolation20 dB
Power Unbalance±0.3 dB
Input/Output Return Loss20 dB
Power Division2 Way
ConfigurationIn-line (180°)
Input/Output PortsWR-19 WG
