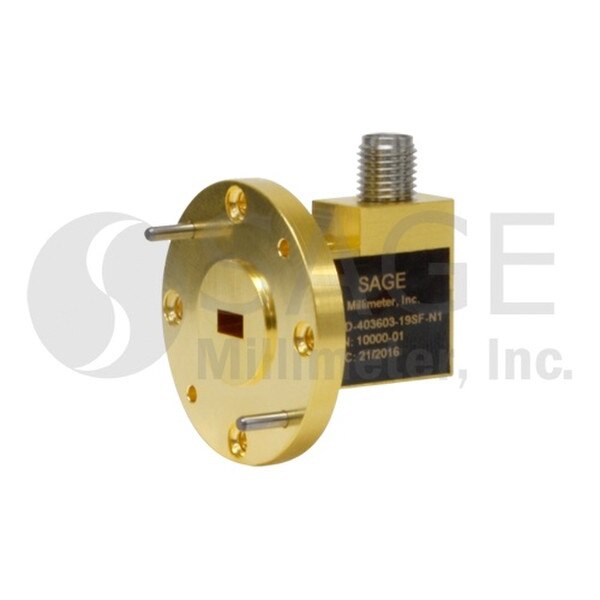

U-Band Negative Amplitude Detector

40 to 60 GHz, 1100 mV/mW Sensitivity, WR-19 Waveguide
SKU:SFD-403603-19SF-N1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFD-403603-19SF-N1 is a U Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,400.00
5 - 9$1,260.00
10 - 24$1,134.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency60 GHz
Sensitivity1100 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityNegative
RF PortWR-19 Waveguide
DC PortSMA (F)
