U-Band Quadrature Mixer, Limited Run

40 to 51 GHz, DC to 2 GHz IF, +16 dBm LO Power, WR-19 Waveguide
SKU:SFQ-49351311-1919SF-N1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SFQ-40360312-1919SF-N1-M as an alternative solution. Read more about Limited Run Products here.

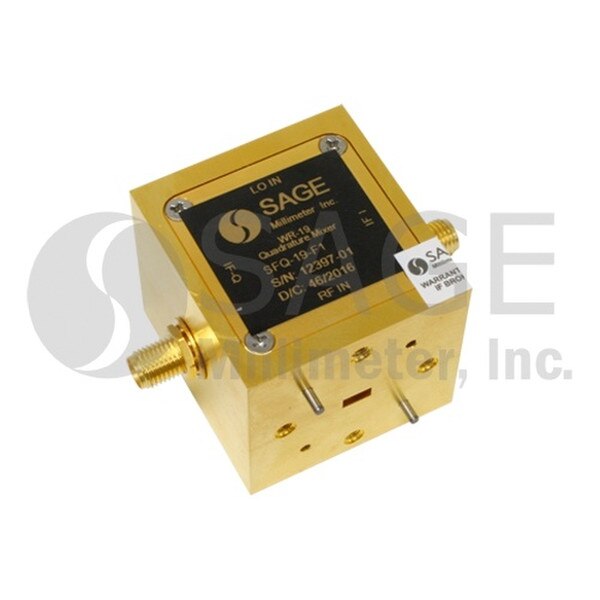

Model SFQ-49351311-1919SF-N1 is a U Band quadrature mixer that covers the frequency range of 40 to 51 GHz. The typical conversion loss of the quadrature mixer is 9 dB with an LO driving power of +16 dBm. The typical LO to RF port isolation is 30 dB. Since the IF port of the quadrature mixer is DC coupled, the mixer can be used as a phase detector. In addition, the mixer can be readily configured into an image rejection mixer or single sideband modulator by adding an IF quadrature coupler.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,050.00
3 - 4$2,897.50
5 - 9$2,752.63

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency40 GHz
Maximum RF Frequency51 GHz
Minimum LO Frequency40 GHz
Maximum LO Frequency51 GHz
Minimum IF FrequencyDC
Maximum IF Frequency2 GHz
LO Pumping Power+16 dBm
Conversion Loss9 dB
RF PortWR-19 Waveguide
