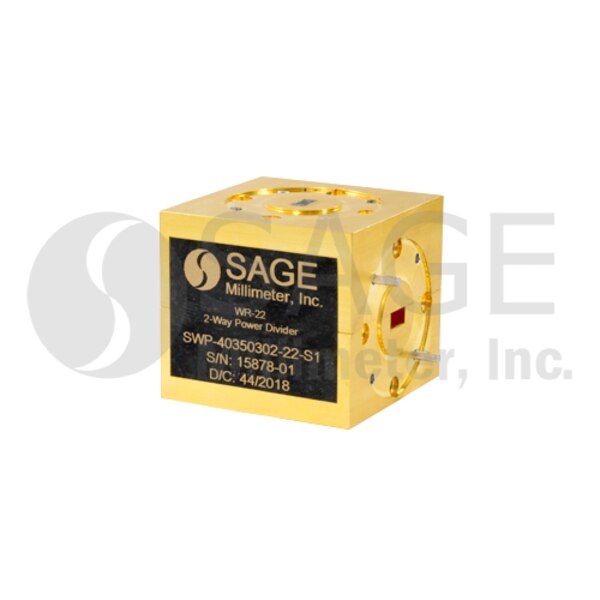

2-Way Right Angle Power Divider, Limited Run

40 to 50 GHz, 20 dB Port Isolation, WR-22 Waveguide, Q-Band
SKU:SWP-40350302-22-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SWP-33350302-22-S1 as an alternative solution. Read more about Limited Run Products here.

SWP-40350302-22-S1 is a Q band, 2-way power divider with a typical insertion loss of 0.3 dB across the frequency range of 40 to 50 GHz. The divider offers 20 dB isolation and well balanced ports, which can be used for in-phase power dividing or combining. This power divider comes as a right angle configuration with WR-22 waveguides and UG-383/U anti-cocking flanges at the input and all outputs.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $820.00
10 - 24 $738.00
25 - 49 $664.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency40 GHz
Maximum Frequency50 GHz
Insertion Loss0.3 dB
Port Isolation20 dB
Port Return Loss17 dB
Power Division2 Way
ConfigurationRight Angle (90°)
Input/Output PortsWR-22 WG
